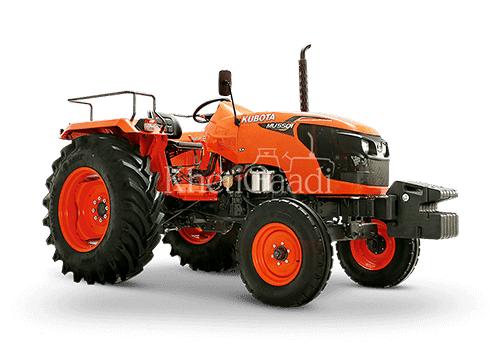

Kubota MU5501 and John Deere 5305
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | Kubota V2403-M-DI, Inline FIP E-CDIS,4 Cylinder, Liquid Cooled | N/A | |||
| Engine rated RPM | 2300 RPM | 2400 RPM | |||
| HP Category | 55 HP | N/A | |||
| Displacement CC in | 2434 CC | NA CC | |||
| No. of cylinder | 4 Cylinder | 3 Cylinder | |||
| Max Torque - Nm | N/A | NA Nm | |||
| Air Cleaner / Filter | Dry Type, Dual Element | Dry Type, Dual Element | |||
| Cooling System | Liquid Cooled | Coolant Cooled With Overflow Reservoir | |||
| Fuel type | Diesel | Diesel | |||
| Fuel Pump Type | N/A | NA | |||
| Hydraulics | 1800 | N/A | |||
| Transmission | |||||
| Transmission type | Syschromesh | Collar Shift | |||
| No. of gears Forward | 8 Forward | 8 Forward | |||
| No. of gears Reverse | 4 Reverse | 4 Reverse | |||
| Speed Forward - kmph | 3 - 31 Kmph | 3.18 - 33.48 Kmph | |||
| Speed Reverse - kmph | 5 - 13 Kmph | 4.22 - 14.90 Kmph | |||
| Brakes type | Oil Immersed Disc Brakes | Oil Immersed Disc Brakes | |||
| clutch type | Double Clutch | Single/Dual Clutch | |||
| Gear Box Type | 8 Forward + 4 Reverse | 8 Forward + 4 Reverse Collarshift | |||
| Front Axle | Variable 2WD | N/A | |||
| Power Take Off | |||||
| Max PTO (HP) | 46.8 HP | 46.8 HP | |||
| PTO RPM @ engine, rpm | 540 and 750 RPM | 540 RPM | |||
| PTO Type | Independent, Dual PTO/Rev. PTO* | Independent, 6 Splines | |||
| Steering | |||||
| Steering type | Power Steering | Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1800 Kg | 1600 Kg | |||
| 3 Point Linkage | N/A | Category II, Automatic Depth & Draft Control | |||
| Dimensions & Weight | |||||
| Ground Clearance | 415 Nm | 0430 Nm | |||
| Total Weight | 2200 Kg | 1920 Kg | |||
| Turning radius With Brake | 2850 Nm | 2900 Nm | |||
| Turning radius Without Brake | N/A | NA mm | |||
| Overall Length | 3250 mm | 3420 mm | |||
| Overall Width | 1850 mm | 1810 mm | |||
| Wheel Base | 2100 mm | 1960 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 7.5 x 16 | 6.0 x 16 7.5 x 16 ( Optional ) | |||
| Tyre Size Rear | 16.9 x 28 | 14.9 x 28, 16.9 x 28 ( Optional ) | |||
| Electrical | |||||
| Battery Capacity | 12 volt AH | 12 V 88 AH | |||
| Alternator | 40 Amp | 40 A | |||
| Others | |||||
| Accessories | N/A | Ballast Weight, Canopy, Canopy Holder, Tow Hook, Drawbar, Wagon Hitch | |||
