John Deere
John Deere 5210 E 4WD and John Deere 5050D 4WD

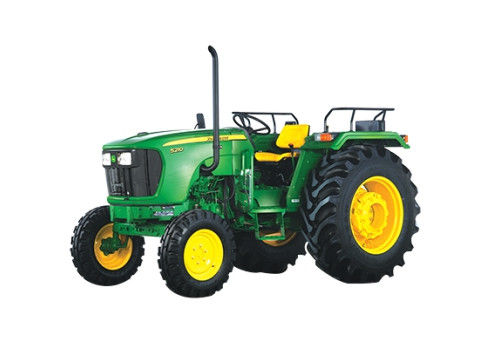

John Deere 5210 E 4WD
50 HP
|
John Deere 5050D 4WD
50 HP
9.7 Lakh - 9.45 Lakh
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | N/A | John Deere 3029D, 50 HP, 2100 RPM, 3 Cylinders, Coolant Cooled with Overflow reservoir,Turbo Charged | |||
| Engine rated RPM | 2400 RPM | 2100 RPM | |||
| HP Category | N/A | 50 HP | |||
| No. of cylinder | 3 Cylinder | 3 Cylinder | |||
| Air Cleaner / Filter | Dry Type, Dual Element | Dry Type, Dual Element | |||
| Cooling System | Water Cooled | Coolant Cooled With Overflow Reservoir | |||
| Fuel type | N/A | Diesel | |||
| Starter Motor | N/A | 2.5 | |||
| Accessories | N/A | Ballast Weight, Canopy, Canopy Holder, Draw Bar | |||
| Transmission | |||||
| Transmission type | N/A | Collarshift | |||
| No. of gears Forward | N/A | 8 Forward | |||
| No. of gears Reverse | N/A | 4 Reverse | |||
| Speed Forward - kmph | 2.06 X 28.94 Kmph | 2.97 - 32.44 Kmph | |||
| Speed Reverse - kmph | 3.45 X 22.39 kmph Kmph | 3.89 - 14.1 Kmph | |||
| Brakes type | Oil Immersed Disc Brakes | Oil Immersed Disc Brakes | |||
| clutch type | Dual Clutch | Single/Dual Clutch | |||
| Gear Box Type | N/A | 8 Forward + 4 Reverse Collarshift | |||
| Power Take Off | |||||
| Max PTO (HP) | 42.5 PTO HP | 42.5 HP | |||
| PTO RPM @ engine, rpm | 540@2376 RPM | 540 RPM | |||
| PTO Type | Independent 6, Splines | Independent, 6 Splines | |||
| Steering | |||||
| Steering type | Power steering | Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 2000 Kg | 1600 Kg | |||
| 3 Point Linkage | Category - II | Category II,Automatic Depth & Draft Control | |||
| Dimensions & Weight | |||||
| Ground Clearance | N/A | 430 Nm | |||
| Total Weight | 2410 Kg | 1975 Kg | |||
| Turning radius With Brake | 3530 Nm | 2900 mm Nm | |||
| Overall Length | 3570 mm | 3430 mm | |||
| Overall Width | 1870 mm | 1830 mm | |||
| Wheel Base | 2050 mm | 1970 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 9.5 X24 | 8.0 x 18 mm, 8 | |||
| Tyre Size Rear | 16.9 x28 | 14.9 x 28 ,12 | |||
| Electrical | |||||
| Battery Capacity | 12V, 88Ah AH | 88 Ah, 12 V battery AH | |||
| Alternator | N/A | 40 A | |||
| Others | |||||
