John Deere

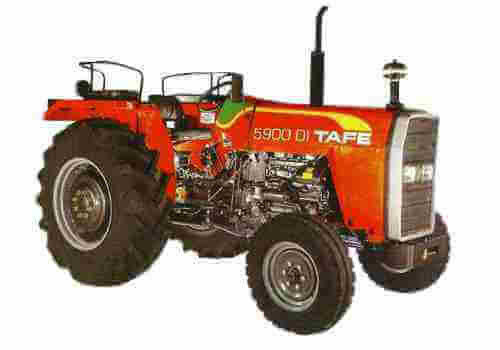

John Deere 5060E and Tafe 5900 DI
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | 60 HP (44.7 KW), 2400 RPM, 3 Cylinder, Direct Injection, Turbo Charged, Rotary FIP, Liquid Cooled With Overflow Reservoir | Four Stroke DI Engine, Water Cooled | |||
| Engine rated RPM | 2400 RPM | N/A | |||
| HP Category | 60 HP | 60 HP | |||
| Displacement CC in | N/A | 3300 CC | |||
| No. of cylinder | 3 Cylinder | 4 Cylinder | |||
| Max Torque - Nm | 212.5 Nm | N/A | |||
| Air Cleaner / Filter | Dry Type, Dual Element | Wet Type | |||
| Cooling System | Liquid Cooled | N/A | |||
| Fuel type | Diesel | N/A | |||
| Power KW | 38.6 KW | N/A | |||
| Bore in (mm) | 106.51 mm | N/A | |||
| Starter Motor | 2.5 | N/A | |||
| Accessories | Ballast Weight, Canopy, Canopy Holder, Tow Hook, Wagon Hitch, Drawbar | N/A | |||
| Transmission | |||||
| Transmission type | Collarshift | N/A | |||
| No. of gears Forward | 9 Forward | 8 Forward | |||
| No. of gears Reverse | 3 Reverse | 2 Reverse | |||
| Speed Forward - kmph | 2.3 - 32.8 Kmph | N/A | |||
| Speed Reverse - kmph | 3.9 - 25.4 Kmph | N/A | |||
| Brakes type | Oil Immersed Disc Brakes | Oil Immersed Brakes | |||
| clutch type | Dual Clutch | Dual Clutch | |||
| Gear Box Type | 9 Forward + 3 Reverse Collarshift | N/A | |||
| Front Axle | Adjustable | N/A | |||
| Power Take Off | |||||
| Max PTO (HP) | 51 HP | N/A | |||
| PTO RPM @ engine, rpm | 540 @ 2376 RPM | 540@1500 RPM | |||
| PTO Type | Independent, 6 Splines | Single Speed | |||
| Steering | |||||
| Steering type | Power Steering | Hydrostatic Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1800 Kg | 2050 Kg | |||
| 3 Point Linkage | Category II Automatic Depth & Draft Control | Draft, Position And Response Control, Lower Links With Cat 2 | |||
| Dimensions & Weight | |||||
| Ground Clearance | 470 Nm | N/A | |||
| Total Weight | 2130 Kg | 2430 Kg | |||
| Turning radius With Brake | 3181 mm Nm | 3300 Nm | |||
| Overall Length | 3540 mm | 3600 mm | |||
| Overall Width | 1885 mm | 1865 mm | |||
| Wheel Base | 2050 mm | N/A | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 6.5 x 20 mm, 8 PR | 7.50 x 16 | |||
| Tyre Size Rear | 16.9 x 30 mm, 12 PR | 16.9 x 28 | |||
| Electrical | |||||
| Battery Capacity | 12 V 88 Ah AH | N/A | |||
| Alternator | 12V 40 A | N/A | |||
| Others | |||||
