Farmtrac

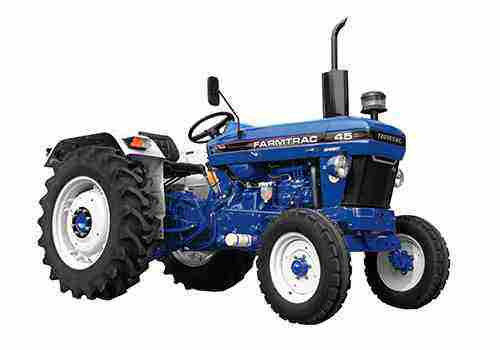

Farmtrac 45 Smart
Farmtrac 45 Smart
48 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine rated RPM | 2200 RPM | ||||
| HP Category | 47 HP | ||||
| No. of cylinder | 3 Cylinder | ||||
| Air Cleaner / Filter | 3 Stage Pre Oil Cleaing | ||||
| Cooling System | Forced Air Bath | ||||
| Fuel type | Diesel | ||||
| Hydraulics | 1500/1800 | ||||
| Transmission | |||||
| Transmission type | Constant Mesh With Center Shift | ||||
| No. of gears Forward | 8 Forward | ||||
| No. of gears Reverse | 2 Reverse | ||||
| Speed Forward - kmph | 2.8 - 32.6 Kmph | ||||
| Speed Reverse - kmph | 4.3 - 15.3 Kmph | ||||
| Brakes type | Multi Plate Oil Immersed Disc Brakes/Multi Plate Dry Disc Brakes | ||||
| clutch type | Single/Dual Clutch | ||||
| Gear Box Type | 8 Forward + 2 Reverse Full Constant Mesh | ||||
| Front Axle | Adjustable Axle/Fixed Axle/Swept Back Axle | ||||
| Rear Axle | Straight Axle | ||||
| Power Take Off | |||||
| Max PTO (HP) | 42.5 HP | ||||
| PTO RPM @ engine, rpm | 540@1810 RPM | ||||
| PTO Type | 540 And Multi Speed Reverse PTO/Single | ||||
| Steering | |||||
| Steering type | Balanced Power Steering/Mechanical - Single Drop Arm | ||||
| Hydraulic | |||||
| Lifting Capacity Max. | 1500/1800 Kg | ||||
| Spool Valve | Single Acting Spool Valve | ||||
| Type | ADDC | ||||
| Dimensions & Weight | |||||
| Ground Clearance | 377 Nm | ||||
| Total Weight | 1940 Kg | ||||
| Turning radius With Brake | 3250 / 2780 Nm | ||||
| Overall Length | 3260 mm | ||||
| Overall Width | 1700 mm | ||||
| Wheel Base | 2105/1875 mm | ||||
| Wheels & Tyres | |||||
| Tyre Size Front | 6.0 x 16 | ||||
| Tyre Size Rear | 13.6 x 28 | ||||
| Electrical | |||||
| Battery Capacity | 12 V 75 Ah AH | ||||
| Alternator | 12 V 36 A | ||||
| Others | |||||
