Eicher Tractors
Eicher 364 and Farmtrac Champion 35
Eicher 364
35 HP
5.8 Lakh - 6.56 Lakh
|

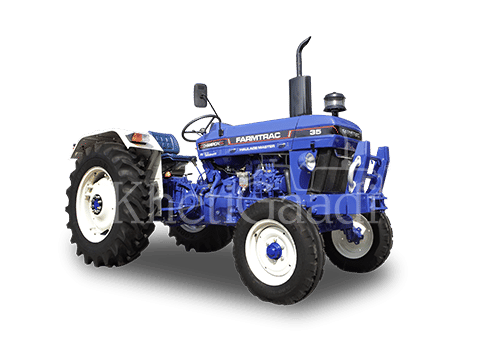

Farmtrac Champion 35
35 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine rated RPM | N/A | 2200 RPM | |||
| HP Category | 35 HP | 35 HP | |||
| Displacement CC in | 1963 CC | N/A | |||
| No. of cylinder | 2 Cylinder | 3 Cylinder | |||
| Max Torque - Nm | 121.3 Nm | N/A | |||
| Air Cleaner / Filter | N/A | 3 Stage Pre Oil Cleaning | |||
| Cooling System | N/A | Forced Air Bath | |||
| Fuel type | N/A | Diesel | |||
| Fuel Pump Type | Inline | N/A | |||
| Power KW | 21.7 KW | N/A | |||
| Height | 2185 mm | N/A | |||
| Accessories | N/A | TOOLS, BUMPHER, Ballast Weight, TOP LINK, CANOPY | |||
| Hydraulics | N/A | ADDC - 1500 | |||
| Transmission | |||||
| Transmission type | Central Shift, Combination Of Constant & Sliding Mesh | Fully constant mesh, Center Shift | |||
| No. of gears Forward | 8 Forward | 8 Forward | |||
| No. of gears Reverse | 2 Reverse | 2 Reverse | |||
| Speed Forward - kmph | N/A | 2.6 - 29.8 Kmph | |||
| Speed Reverse - kmph | N/A | 3.0 - 10.6 Kmph | |||
| Brakes type | Disc Brakes | Multi Plate Oil Immersed Disc Brakes | |||
| clutch type | Single Clutch | Single Clutch | |||
| Gear Box Type | N/A | 8 Forward + 2 Reverse Full Constant Mesh | |||
| Power Take Off | |||||
| PTO RPM @ engine, rpm | 1000 RPM | 540 @1810 RPM | |||
| PTO Type | Live | Single 540 | |||
| Steering | |||||
| Steering Column | N/A | Single Drop Arm | |||
| Steering type | Mechanical Steering | Mechanical / Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1200 Kg | ADDC - 1500 Kg | |||
| 3 Point Linkage | Automatic Depth And Draft Control | Draft , Position And Response Control Links | |||
| Dimensions & Weight | |||||
| Ground Clearance | 400 Nm | 377 Nm | |||
| Total Weight | 1710 Kg | 1895 (Unballasted) Kg | |||
| Turning radius With Brake | 2885 Nm | 3000 Nm | |||
| Overall Length | 3385 mm | 3315 mm | |||
| Overall Width | 1620 mm | 1710 mm | |||
| Wheel Base | 1830 mm | 2100 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 6.00 x 16 | 6.0 x 16 | |||
| Tyre Size Rear | 12.4 x 28 | 12.4 x 28 | |||
| Electrical | |||||
| Battery Capacity | 12 V 70 Ah AH | 12 V 75 Ah AH | |||
| Alternator | N/A | 2 V 35 A | |||
| Others | |||||
