Specifications of Swan Agro Compact Disc Harrow NSCMDH 16

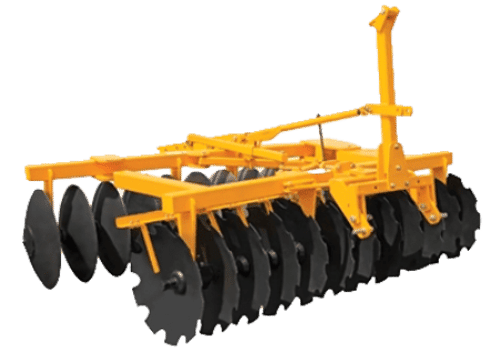

Swan Agro Compact Disc Harrow NSCMDH 16
Specifications of Swan Agro Compact Disc Harrow NSCMDH 16
BEARING HUBS | 6 |
---|---|
Disc Diameter | 610x4.5 T (24”) or 660 x 6 T (26”) |
FRAME (mm) | 100x7 T (Sq. Pipe frame ) |
GANG BOLT / AXLE (mm) | 30 & 40 (Solid Sq. Rod) |
No of Discs | 16 |
Required tractor HP | 50-60 |
Type of Disc | Notched Disc In front gang & plain Disc In rear gang |
Weight(kg) | 805 |
Width of cut ( mm) | 1912 |
