Trakstar
Trakstar 550 and Force Motors Samman 6000 LT
Trakstar 550
50 HP
7.8 Lakh - 8 Lakh
|

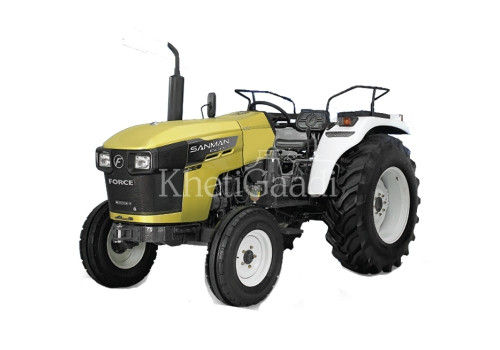

Force Motors Samman 6000 LT
50 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine rated RPM | 2100 RPM | 2200 RPM | |||
| HP Category | 50 HP | N/A | |||
| Displacement CC in | 2979 CC | N/A | |||
| No. of cylinder | 4 Cylinder | 3 Cylinder | |||
| Air Cleaner / Filter | 3 Stage Wet Type | N/A | |||
| Cooling System | Water Cooled | Water cooled | |||
| Fuel type | Diesel | N/A | |||
| Height | 2260 mm | N/A | |||
| Hydraulics | 1400 | N/A | |||
| Transmission | |||||
| Transmission type | Partial Constant Mesh | Synchromesh | |||
| No. of gears Forward | 8 Forward | N/A | |||
| No. of gears Reverse | 2 Reverse | N/A | |||
| Brakes type | Oil Immersed Brakes | Fully Oil Immersed Multiplate Sealed Disc Brakes | |||
| clutch type | Single Diaphram/Dual-clutch | Dual, Dry Mechanical Actuation | |||
| Gear Box Type | 8 Forward + 2 Reverse Partial constant Mesh | N/A | |||
| Power Take Off | |||||
| Max PTO (HP) | 42.5 HP | N/A | |||
| PTO RPM @ engine, rpm | N/A | 540/1000 RPM | |||
| Steering | |||||
| Steering type | Mechanical/Power steering | Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1400 Kg | 1450 Kg | |||
| 3 Point Linkage | N/A | Category II | |||
| Type | High-Tech, Fully Live With Position And Draft Control Lever | N/A | |||
| Dimensions & Weight | |||||
| Ground Clearance | N/A | 430 Nm | |||
| Total Weight | 1945/2035 kg Kg | 2130 Kg | |||
| Overall Length | 3540 mm | N/A | |||
| Overall Width | 1825 mm | N/A | |||
| Wheel Base | 1950 mm | 2032 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 6 x 16 | 7.50 X 16 | |||
| Tyre Size Rear | 12.4 x 28 / 13.6 x 28 | 16.9 x 28 | |||
| Electrical | |||||
| Others | |||||
