Tafe
Tafe 7502 DI 4WD and New Holland 7500 Turbo Super 4WD

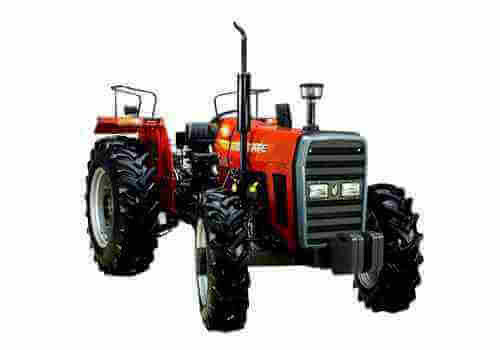

Tafe 7502 DI 4WD
75 HP
|
New Holland 7500 Turbo Super 4WD
75 HP
11 Lakh - 11.5 Lakh
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | Four Stroke DI Engine, Water Cooled | FPT S8000 Series | |||
| Engine rated RPM | 2200 RPM | N/A | |||
| HP Category | 75 HP | 75 HP | |||
| Displacement CC in | 4000 CC | N/A | |||
| No. of cylinder | 4 Cylinder | 4 Cylinder | |||
| Air Cleaner / Filter | Wet Type | Dry Type, Dual Element | |||
| Cooling System | N/A | Water Cooled | |||
| Fuel type | N/A | Diesel | |||
| Fuel Pump Type | N/A | Rotary FIP | |||
| Accessories | Front Weight, Rear Wheel Weight, Swinging Draw Bar | Tools, Bumpher, Ballast Weight, Top Link, Canopy, Hitch, Drawbar | |||
| Hydraulics | N/A | 1700 / 2000 | |||
| Transmission | |||||
| Transmission type | N/A | Fully Constant Mesh / Partial Synchro Mesh | |||
| No. of gears Forward | 8 Forward | 8 / 12 CR / 12 Forward | |||
| No. of gears Reverse | 2 Reverse | 2 / 3 CR / 3 Reverse | |||
| Speed Forward - kmph | N/A | 1.04 - 34.18 Kmph | |||
| Speed Reverse - kmph | N/A | 1.46 - 16.21 Kmph | |||
| Brakes type | Oil Immersed Brakes | Mechanically Actuated Oil Immersed Multi Disc Brakes | |||
| clutch type | Dual Clutch | Double Clutch With Independent Clutch Lever | |||
| Gear Box Type | N/A | 8 Forward + 2 Reverse / 12 Forward + 3 Reverse Creeper / 12 Forward + 3 Reverse UG | |||
| Power Take Off | |||||
| Max PTO (HP) | N/A | 65 HP | |||
| PTO RPM @ engine, rpm | 540@1790 RPM | 540 RPM | |||
| PTO Type | Single Speed | GSPTO Or RPTO | |||
| Steering | |||||
| Steering type | N/A | Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 2050 Kg | 1700 / 2000 Kg | |||
| 3 Point Linkage | Draft, Position And Response Control, Lower Links With Cat 2 | Lift-O-Matic & Height Limiter | |||
| Dimensions & Weight | |||||
| Ground Clearance | N/A | 500 Nm | |||
| Total Weight | 3130 Kg | 2270 Kg | |||
| Turning radius With Brake | 4400 Nm | N/A | |||
| Overall Length | 4105 mm | N/A | |||
| Overall Width | 2075 mm | N/A | |||
| Wheel Base | N/A | 2200 mm mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 11.2 x 24 | 7.50 x 16 / 12.4 x 24 | |||
| Tyre Size Rear | 18.4 x 30 | 16.9 x 30 / 18.4 x 30 | |||
| Electrical | |||||
| Battery Capacity | N/A | 88 Ah AH | |||
| Alternator | N/A | 55 A | |||
| Others | |||||
