Tafe
Tafe 5450 DI and Force Motors Balwan 550

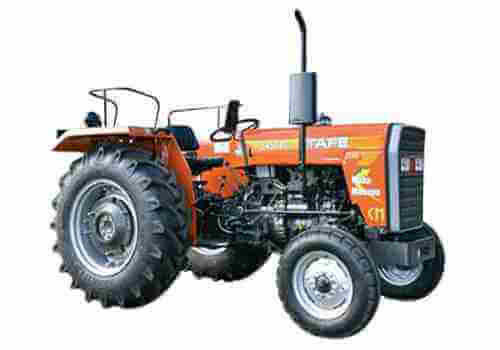

Tafe 5450 DI
52 HP
|
Force Motors Balwan 550
51 HP
7.85 Lakh - 7.15 Lakh
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | Four Stroke DI Engine, Water Cooled | 4 Stroke, Inline, Direct Injection | |||
| Engine rated RPM | 2250 RPM | 2600 RPM | |||
| HP Category | 52 HP | 51 HP | |||
| Displacement CC in | 2700 CC | 2596 CC | |||
| No. of cylinder | 3 Cylinder | 4 Cylinder | |||
| Air Cleaner / Filter | Wet Type | N/A | |||
| Cooling System | N/A | Water Cooled | |||
| Fuel type | N/A | Diesel | |||
| Accessories | Front Weight, Rear Wheel Weight, Auto Hitch, Draw Bar | N/A | |||
| Hydraulics | N/A | 1318 | |||
| Transmission | |||||
| Transmission type | N/A | Synchromesh Trans axle | |||
| No. of gears Forward | 8 Forward | 8 Forward | |||
| No. of gears Reverse | 2 Reverse | 4 Reverse | |||
| Brakes type | MDSS | Oil Immersed Multiplate Sealed Disc Brakes | |||
| clutch type | Dual Clutch | Dry, Dual Clutch Plate | |||
| Gear Box Type | N/A | 8 Forward + 4 Reverse | |||
| Power Take Off | |||||
| PTO RPM @ engine, rpm | 540 @1500 RPM | 540 & 1000 RPM | |||
| PTO Type | Live | N/A | |||
| Steering | |||||
| Steering type | Mechanical/Hydrostatic Steering | Mechanical / Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1450 Kg | 1318 Kg | |||
| 3 Point Linkage | Draft, Position And Response Control, Lower Links With Combi Ball | Category I and Category II ( Reversible with Adjustable Check Chain) | |||
| Type | N/A | A.D.D.C with Bosch Control Valve | |||
| Dimensions & Weight | |||||
| Ground Clearance | N/A | 350 Nm | |||
| Total Weight | 2100 Kg | 2070 Kg | |||
| Turning radius With Brake | 2950 Nm | 3400 Nm | |||
| Overall Length | 3485 mm | 3325 mm | |||
| Overall Width | 1740 mm | 1885 mm | |||
| Wheel Base | N/A | 1970 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | N/A | 6.00 x 16 | |||
| Tyre Size Rear | N/A | 16.9 x 28 | |||
| Type Front | 6.00 x 16 | N/A | |||
| Type Rear | 14.9 x 28 | N/A | |||
| Electrical | |||||
| Battery Capacity | N/A | Lead Acid 12 Volts, 70 Ah. AH | |||
| Alternator | N/A | 14 Volts-23 AMP Sealed for Water Splash | |||
| Others | |||||
