Swaraj

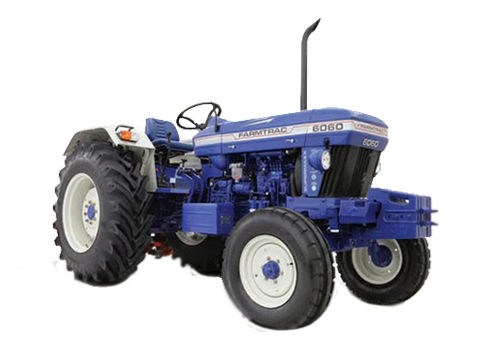

Swaraj 960 FE and Farmtrac 6060 Executive
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | 4 - Stroke, Direct Injection, Diesel Engine with EGR | N/A | |||
| Engine rated RPM | 2000 RPM | 2000 RPM | |||
| HP Category | 55 HP | 60 HP | |||
| Displacement CC in | 3480 CC | N/A | |||
| No. of cylinder | 3 Cylinder | 4 Cylinder | |||
| Air Cleaner / Filter | 3- Stage Oil Bath Type | 3 Stage Oil Bath Type | |||
| Cooling System | Water Cooled with No loss tank | Water Cooled | |||
| Fuel type | Diesel | Diesel | |||
| stroke in (mm) | 122 mm | N/A | |||
| Bore in (mm) | 110 mm | N/A | |||
| Height | 2340 mm | N/A | |||
| Hydraulics | N/A | 1800 | |||
| Transmission | |||||
| Transmission type | N/A | Full Constant Mesh | |||
| No. of gears Forward | 8 Forward | 8 Forward | |||
| No. of gears Reverse | 2 Reverse | 2 Reverse | |||
| Speed Forward - kmph | 2.7 - 33.5 Kmph | 3.19 - 36.10 Kmph | |||
| Speed Reverse - kmph | 3.3 - 12.9 Kmph | 3.58 - 12.80 Kmph | |||
| Brakes type | Oil Immersed Brakes | Multi Plate Oil Immersed Disc Brakes | |||
| clutch type | Dual Clutch | Independent/Dual Clutch | |||
| Gear Box Type | N/A | 8 Forward + 2 Reverse Full Constant Mesh | |||
| Front Axle | N/A | Adjustable Axle | |||
| Power Take Off | |||||
| Max PTO (HP) | 51 HP | 51 HP | |||
| PTO RPM @ engine, rpm | 540 RPM | 540 RPM | |||
| Steering | |||||
| Steering type | Independent Power Steering | Balanced Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 2000 Kg | 1800 Kg | |||
| 3 Point Linkage | Category-I suitable for Category-II type implement pins | N/A | |||
| Type | Live With Position control, Automatic draft control and Mix Control and Toggle switch | N/A | |||
| Dimensions & Weight | |||||
| Ground Clearance | 410 Nm | 460 Nm | |||
| Total Weight | 2330 Kg | 2540 Kg | |||
| Turning radius Without Brake | N/A | 4000 mm | |||
| Overall Length | 3590 mm | 3650 mm | |||
| Overall Width | 1940 mm | 1860 mm | |||
| Wheel Base | 2200 mm | 2260 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 7.50 x 16 | 7.5 x 16 | |||
| Tyre Size Rear | 16.9 x 28 | 16.9 x 28 | |||
| Type Front | 1400 | N/A | |||
| Type Rear | 1480 | N/A | |||
| Electrical | |||||
| Battery Capacity | 12 V, 99 Ah AH | 12 V 120 Ah AH | |||
| Alternator | N/A | 3 V 35 A | |||
| Others | |||||
