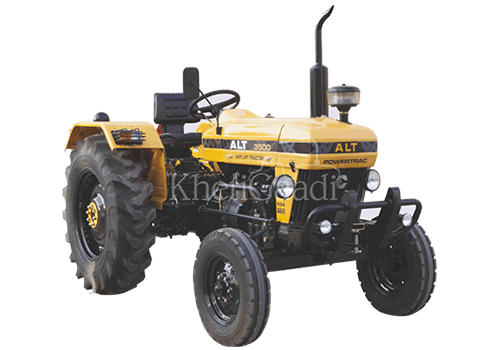

Powertrac ALT 3500
Powertrac ALT 3500
37 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine rated RPM | 2200 RPM RPM | ||||
| HP Category | 37 HP HP | ||||
| Displacement CC in | 2146 CC CC | ||||
| No. of cylinder | 3 Cylinder | ||||
| Fuel type | Diesel | ||||
| Dry Weight kg | Single Drop Arm Kg | ||||
| Hydraulics | 1500 kg | ||||
| Transmission | |||||
| Transmission type | Constant Mesh | ||||
| No. of gears Forward | 8 Forward | ||||
| No. of gears Reverse | 2 Reverse | ||||
| Speed Forward - kmph | 2.8 - 30.9 kmph Kmph | ||||
| Speed Reverse - kmph | 3.7 - 11.4 kmph Kmph | ||||
| Brakes type | Multi Plate Oil Immersed Disc Brakes | ||||
| clutch type | Single Clutch | ||||
| Gear Box Type | 8 Forward + 2 Reverse | ||||
| Front Axle | Fixed-Straight Axle | ||||
| Rear Axle | Hub Reduction | ||||
| Power Take Off | |||||
| Max PTO (HP) | 31.5 PTO HP HP | ||||
| PTO RPM @ engine, rpm | 540 PTO @ engine RPM 1800 RPM | ||||
| PTO Type | Single 540 | ||||
| Steering | |||||
| Steering type | Power Steering / Mechanical Single Drop Arm Option | ||||
| Hydraulic | |||||
| Lifting Capacity Max. | 1500 kg Kg | ||||
| Dimensions & Weight | |||||
| Ground Clearance | 390 mm Nm | ||||
| Total Weight | 1850 kg Kg | ||||
| Overall Length | 3225 mm mm | ||||
| Overall Width | 1720 mm mm | ||||
| Wheel Base | 2070 mm mm | ||||
| Wheels & Tyres | |||||
| Tyre Size Front | 6.0 x 16 mm | ||||
| Tyre Size Rear | 13.6 x 28 mm | ||||
| Electrical | |||||
| Others | |||||
