Powertrac

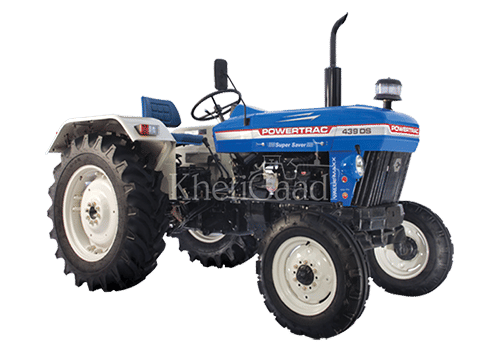

Powertrac 439 DS Super Saver 2WD
Powertrac 439 DS Super Saver 2WD
39 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine rated RPM | 2200 RPM | ||||
| Displacement CC in | 2146 CC | ||||
| No. of cylinder | 3 Cylinder | ||||
| Air Cleaner / Filter | Oil Bath Type | ||||
| Cooling System | Water Cooled | ||||
| Fuel type | Diesel | ||||
| Hydraulics | 1500 | ||||
| Transmission | |||||
| Transmission type | Constant Mesh With Center Shift | ||||
| No. of gears Forward | 8 Forward | ||||
| No. of gears Reverse | 2 Reverse | ||||
| Speed Forward - kmph | 2.7 - 30.6 Kmph | ||||
| Speed Reverse - kmph | 3.3 - 10.2 Kmph | ||||
| Brakes type | Multi Plate Oil Immersed Disc Brakes | ||||
| clutch type | Single Clutch | ||||
| Gear Box Type | 8 Forward + 2 Reverse | ||||
| Front Axle | Straight/Bend Axle Option | ||||
| Rear Axle | Inboard Reduction | ||||
| Power Take Off | |||||
| Max PTO (HP) | 34 HP | ||||
| PTO Type | Single 540 | ||||
| Steering | |||||
| Hydraulic | |||||
| Lifting Capacity Max. | 1500 Kg | ||||
| Dimensions & Weight | |||||
| Ground Clearance | 400 Nm | ||||
| Total Weight | 1850 Kg | ||||
| Turning radius With Brake | 3200 Nm | ||||
| Overall Length | 3225 mm | ||||
| Overall Width | 1750 mm | ||||
| Wheel Base | 2010 mm | ||||
| Wheels & Tyres | |||||
| Tyre Size Front | 6.0 x 16 | ||||
| Tyre Size Rear | 13.6 x 28 | ||||
| Electrical | |||||
| Others | |||||
