Powertrac
Powertrac 439 DS Diesel Saver and Powertrac Euro 41 4WD
Powertrac 439 DS Diesel Saver
41 HP
|

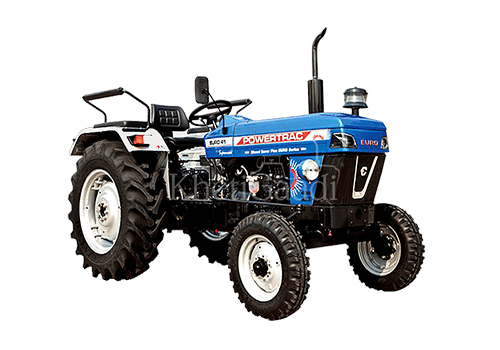

Powertrac Euro 41 4WD
41 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine rated RPM | 2200 RPM | 2200 RPM | |||
| HP Category | 41 HP | 41 HP | |||
| No. of cylinder | 3 Cylinder | 3 Cylinder | |||
| Air Cleaner / Filter | Oil Bath Type | N/A | |||
| Cooling System | Water Cooled | N/A | |||
| Fuel type | Diesel | Diesel | |||
| Fuel Pump Type | N/A | Inline | |||
| Hydraulics | 1500 | 1500 | |||
| Transmission | |||||
| Transmission type | Constant Mesh With Center Shift | Constant Mesh | |||
| No. of gears Forward | 8 Forward | 8 Forward | |||
| No. of gears Reverse | 2 Reverse | 2 Reverse | |||
| Speed Forward - kmph | N/A | 2.7 - 30.3 Kmph | |||
| Speed Reverse - kmph | N/A | 3.3 - 10.1 Kmph | |||
| Brakes type | Multi Plate Oil Immersed Disc Brake / Multi Plate Dry Disc Brake | Multi Plate Oil Immersed Disc Brake / Multi Plate Dry Disc Brake optional | |||
| clutch type | Single Clutch / Dual Clutch | Single / Dual Clutch Optional | |||
| Gear Box Type | 8 Forward + 2 Reverse | 8 Forward + 2 Reverse | |||
| Front Axle | N/A | Fixed-Straight Axle | |||
| Rear Axle | N/A | Inboard Reduction | |||
| Power Take Off | |||||
| Max PTO (HP) | N/A | 34.9 HP | |||
| PTO RPM @ engine, rpm | 540 @1800 RPM | 1840 / 2150 RPM | |||
| PTO Type | Single | Single 540 | |||
| Steering | |||||
| Steering Column | N/A | Single Drop Arm | |||
| Steering type | Mechanical - Single Drop Arm | Balanced Power Steering / Mechanical Single Drop Arm Option | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1500 Kg | 1500 Kg | |||
| Type | ADDC | N/A | |||
| Dimensions & Weight | |||||
| Ground Clearance | 400 Nm | 400 Nm | |||
| Total Weight | 1850 Kg | 1935 Kg | |||
| Turning radius With Brake | 3200 Nm | N/A | |||
| Overall Length | 3225 mm | 3270 mm | |||
| Overall Width | 1750 mm | 1750 mm | |||
| Wheel Base | 2010 mm | 2010 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | N/A | 2.7 x 30.3 | |||
| Tyre Size Rear | N/A | 3.3 x 10.1 | |||
| Electrical | |||||
| Battery Capacity | 12 V 75 Ah AH | 12 V 75 Ah AH | |||
| Alternator | 12 V 36 Ah | 12 V 36 A | |||
| Others | |||||
