New Holland
New Holland TD5.90 4WD and Standard Tractors DI 490 4WD

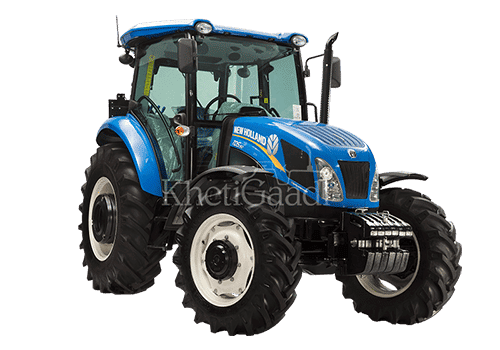

New Holland TD5.90 4WD
90 HP
27 Lakh - 27.9 Lakh
|
Standard Tractors DI 490 4WD
90 HP
11.6 Lakh - 11.25 Lakh
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | FPT S8000 Series | N/A | |||
| Engine rated RPM | 2300 RPM RPM | 2200 RPM | |||
| HP Category | 90 HP HP | N/A | |||
| Displacement CC in | N/A | 4088 CC | |||
| No. of cylinder | 4 Cylinder | 4 Cylinder | |||
| Air Cleaner / Filter | Dry Air Cleaner | N/A | |||
| Cooling System | Water Cooled | Coolent | |||
| Fuel type | Diesel | N/A | |||
| Fuel Pump Type | Rotary | N/A | |||
| Hydraulics | 3565 kg | N/A | |||
| Transmission | |||||
| Transmission type | Fully Synchromesh | Six Speed. Collar Shift With 4x4 Wheel Drive | |||
| No. of gears Forward | 20 Forward | N/A | |||
| No. of gears Reverse | 12 Reverse | N/A | |||
| Brakes type | Hydraulically Actuated Oil Immersed Multi Disc Brakes | Oil immersed Brake | |||
| clutch type | Double Clutch With Independent Clutch Lever | N/A | |||
| Gear Box Type | 20 Forward + 12 Reverse | N/A | |||
| Power Take Off | |||||
| Max PTO (HP) | 76.5 PTO HP HP | Single Speed HP | |||
| PTO RPM @ engine, rpm | 540/540E RPM | N/A | |||
| PTO Type | 540/540E, Ground Speed PTO With Clockwise And Anticlockwise Rotation | N/A | |||
| Steering | |||||
| Steering type | Power Steering | Manual | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 3565 kg Kg | 1800 Kg | |||
| Dimensions & Weight | |||||
| Ground Clearance | 410 mm Nm | N/A | |||
| Total Weight | 3770 kg Kg | 1885 Kg | |||
| Turning radius With Brake | N/A | 400 Nm | |||
| Overall Length | 3865 mm mm | 4100 mm | |||
| Overall Width | 2110 mm mm | 1990 mm | |||
| Wheel Base | 2402 mm mm | N/A | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 12.4 x 24 mm | 4wd 12.2x24 | |||
| Tyre Size Rear | 18.4 x 30 mm | 18.4 x 30 | |||
| Electrical | |||||
| Battery Capacity | 120 Ah AH | N/A | |||
| Alternator | 55 A | N/A | |||
| Others | |||||
