New Holland
New Holland EXCEL 5510 and Eicher 551

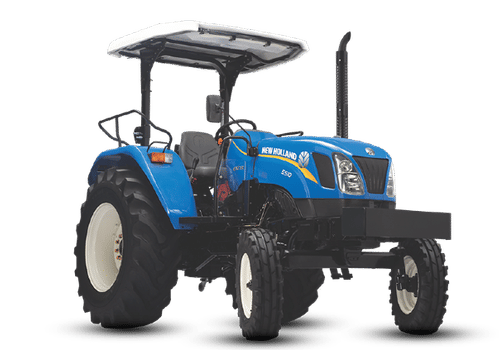

New Holland EXCEL 5510
49 HP
8.58 Lakh - 9.96 Lakh
|
Eicher 551
49 HP
6.8 Lakh - 7.8 Lakh
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | FPT S8000 Series | N/A | |||
| Engine rated RPM | 2100 RPM RPM | N/A | |||
| HP Category | 49.5 HP HP | 49 HP | |||
| Displacement CC in | 2931 CC CC | 3300 CC | |||
| No. of cylinder | 3 Cylinder | 3 Cylinder | |||
| Air Cleaner / Filter | Dry Type Air Cleaner | N/A | |||
| Fuel type | Diesel | N/A | |||
| Fuel Pump Type | N/A | Inline | |||
| stroke in (mm) | 115 mm mm | N/A | |||
| Bore in (mm) | 104 mm mm | N/A | |||
| Height | 2465 mm (Upto silencer) mm | N/A | |||
| Hydraulics | 2500 kg | N/A | |||
| Transmission | |||||
| Transmission type | N/A | Side Shift Sliding, Combination Of Constant Mesh And Sliding Mesh | |||
| No. of gears Forward | 8 / 12 / 20 / 24 Forward | 8 Forward | |||
| No. of gears Reverse | 8 / 12 / 20 / 24 Reverse | 2 Reverse | |||
| Speed Forward - kmph | 1.40 - 32.71 kmph Kmph | N/A | |||
| Speed Reverse - kmph | 1.66 - 38.76 kmph Kmph | N/A | |||
| Brakes type | Mechanically Actuated Oil Immersed Brakes & Hydraulically Actuated OIB | Oil Immersed Brakes (Optional) | |||
| clutch type | Double Clutch With Independent PTO Lever | Single/Dual Clutch (Optional ) | |||
| Gear Box Type | 8+8 / 12+12 / 20+20 / 24+24 Fully Synchromesh Mech & Power Shuttle option | N/A | |||
| Power Take Off | |||||
| Max PTO (HP) | 46 PTO HP HP | N/A | |||
| PTO RPM @ engine, rpm | 540, 540E & RPTO RPM | 540 RPM | |||
| PTO Type | 6 Splines | Live | |||
| Steering | |||||
| Steering type | Power Steering | Mechanical/Power Steering (Optional) | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 2500 kg Kg | 1700 - 1850(subject to variant level) Kg | |||
| 3 Point Linkage | N/A | Automatic Depth And Draft Control | |||
| Dimensions & Weight | |||||
| Ground Clearance | 310 mm Nm | N/A | |||
| Total Weight | 2510 kg Kg | N/A | |||
| Overall Length | 3860 mm mm | N/A | |||
| Overall Width | 2010 mm mm | N/A | |||
| Wheel Base | 2080 mm mm | N/A | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 7.50 x16 mm Or 6.50 x 16 mm | 6.00 x 16 | |||
| Tyre Size Rear | 16.9 x 28 mm | N/A | |||
| Electrical | |||||
| Battery Capacity | 88 Ah AH | 12 V 88 Ah AH | |||
| Others | |||||
