New Holland 5620 TX Plus and Farmtrac 6065 Supermaxx
New Holland 5620 TX Plus
65 HP
|

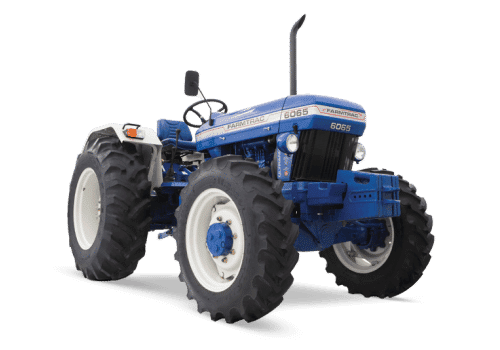

Farmtrac 6065 Supermaxx
65 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | High Pressure Common Rail (TREM IV) | N/A | |||
| Engine rated RPM | 2300 RPM | 2200 RPM | |||
| HP Category | 65 HP | 65 HP | |||
| No. of cylinder | 3 Cylinder | 4 Cylinder | |||
| Air Cleaner / Filter | Dry Type, Dual Element | Oil Bath Type | |||
| Cooling System | N/A | Forced Air Bath | |||
| Fuel type | Diesel | Diesel | |||
| Power KW | 48.47 KW | N/A | |||
| Hydraulics | N/A | 2400 | |||
| Transmission | |||||
| Transmission type | Partial Synchromesh | Synchronmesh | |||
| No. of gears Forward | 12 Forward | 12 Forward | |||
| No. of gears Reverse | 3 Reverse | 12 Reverse | |||
| Speed Forward - kmph | N/A | 1.64 - 33.55 Kmph | |||
| Speed Reverse - kmph | N/A | 1.37 - 28.14 Kmph | |||
| Brakes type | Real Oil Immersed Brakes | Multi Plate Oil Immersed Disc Brakes | |||
| clutch type | Double Clutch With Independent PTO Clutch Lever | Independent Clutch | |||
| Gear Box Type | 12 Forward + 3 Reverse | 12 Forward + 12 Reverse Synchronmesh With Fwd/Rev Synchro Shuttle | |||
| Front Axle | N/A | Heavy Duty-Adjustable Axle | |||
| Rear Axle | Heavy Duty Hub Reduction With Powerful Traction | Epicyclic Reduction | |||
| Power Take Off | |||||
| Max PTO (HP) | 57 HP | N/A | |||
| PTO RPM @ engine, rpm | N/A | 540 RPM @1940 RPM | |||
| PTO Type | 540 | 540 And Ground Speed Reverse PTO | |||
| Steering | |||||
| Steering type | Power Steering | Balanced Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 2000 kg Lifting Capacity With Assist Ram Kg | 2400 Kg | |||
| Type | N/A | ADDC | |||
| Dimensions & Weight | |||||
| Ground Clearance | 895 Nm | 455 Nm | |||
| Total Weight | 2355 Kg | 2320 Kg | |||
| Turning radius With Brake | N/A | 3750 Nm | |||
| Overall Length | 3515 mm | 3690 mm | |||
| Overall Width | 1965 mm | 1910 mm | |||
| Wheel Base | 2050 mm | 2250 mm | |||
| Height | 2375 | N/A | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 7.50 x 16 | 7.5 x 16 | |||
| Tyre Size Rear | 16.9 x 30 | 16.9 x 28 | |||
| Electrical | |||||
| Battery Capacity | 88/100 Ah AH | 12 V 120 Ah AH | |||
| Alternator | 55 A | 3 V 35 A | |||
| Others | |||||
