New Holland
New Holland 4710 Turbo Super 4WD and New Holland Excel 4710 Paddy Special

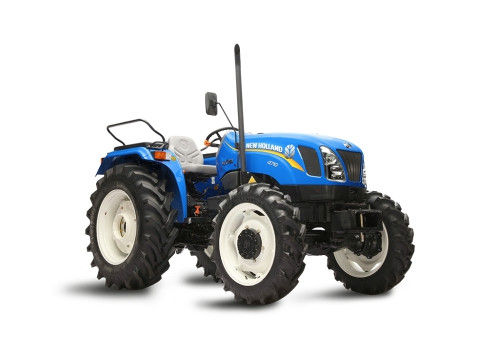

New Holland 4710 Turbo Super 4WD
47 HP
|
New Holland Excel 4710 Paddy Special
47 HP
8 Lakh - 8.7 Lakh
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | N/A | Simpsons, TIIIA SJ327 | |||
| Engine rated RPM | 2250 RPM | 2250 RPM | |||
| HP Category | N/A | 47 HP | |||
| Displacement CC in | 2700 CC | 2700 CC | |||
| No. of cylinder | 3 Cylinder | 3 Cylinder | |||
| Max Torque - Nm | N/A | 167.9 Nm | |||
| Air Cleaner / Filter | Oil Bath Type | Oil Bath With Pre Cleaner | |||
| Cooling System | Water Cooled | N/A | |||
| Fuel type | N/A | Diesel | |||
| Hydraulics | N/A | 1800 | |||
| Transmission | |||||
| Transmission type | Fully Constant Mesh | Fully Constantmesh AFD | |||
| No. of gears Forward | N/A | 8 Forward | |||
| No. of gears Reverse | N/A | 2 Reverse | |||
| Speed Forward - kmph | 35.48 Kmph | 2.93 - 32.52 Kmph | |||
| Speed Reverse - kmph | 14.09 Kmph | 3.10 - 34.36 Kmph | |||
| Brakes type | Oil Immersed Multi Disc Brake | Mechanical, Real Oil Immersed Brakes | |||
| clutch type | Diaphragm Single / Double Clutch (Optional) | Single/Double Clutch | |||
| Gear Box Type | N/A | 8 Forward + 2 reverse | |||
| Power Take Off | |||||
| Max PTO (HP) | 42.41 HP | 43 HP | |||
| PTO RPM @ engine, rpm | 540 / 1000 RPM | N/A | |||
| PTO Type | GSPTO and Reverse PTO | N/A | |||
| Steering | |||||
| Steering type | Manual / Power Steering (Optional) | Mechanical/Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1700 Kg | 1800 Kg | |||
| 3 Point Linkage | Two Levers with Draft Control, Position O-Matic, Response Control, Multiple Sensitivity Control, Isolator Valve | N/A | |||
| Dimensions & Weight | |||||
| Ground Clearance | N/A | 370 Nm | |||
| Total Weight | 2015 Kg | 2255 Kg | |||
| Turning radius With Brake | 2960 Nm | N/A | |||
| Overall Length | 3400 mm | 3400 mm | |||
| Overall Width | 1705 mm | 1740 mm | |||
| Wheel Base | 1965 mm | 2005 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 6.00 x 16 / 9.5 x 24 | 8.0 x 18 | |||
| Tyre Size Rear | 14.9 x 28 | 14.9 x 28 | |||
| Electrical | |||||
| Battery Capacity | 12 V 88 AH AH | 88Ah AH | |||
| Alternator | N/A | 35 A | |||
| Others | |||||
