Massey Ferguson

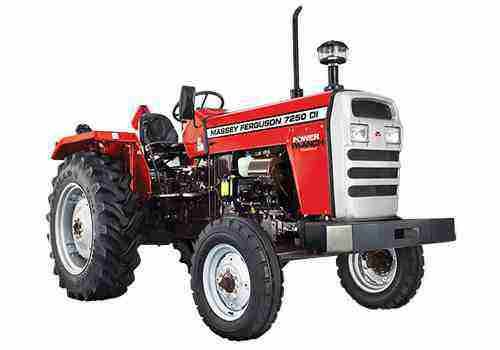

Massey Ferguson 7250 DI 4 WD and Escorts Powertrac Euro 45 Plus 4 WD
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | SIMPSONS S325 TIII A | N/A | |||
| Engine rated RPM | 2000 RPM | ||||
| HP Category | 47 HP HP | 47 HP | |||
| Displacement CC in | 2700 CC CC | 2761 CC | |||
| No. of cylinder | 3 Cylinder Cylinder | 3 Cylinder | |||
| Fuel Pump Type | Inline | N/A | |||
| Height | 1530 mm mm | N/A | |||
| Transmission | |||||
| Transmission type | Constant mesh | N/A | |||
| No. of gears Forward | 8 Forward | 8 Forward | |||
| No. of gears Reverse | 2 Reverse | 8 Reverse | |||
| Speed Forward - kmph | 2.8-31.6 Kmph | ||||
| Speed Reverse - kmph | 2.8-31.6 Kmph | ||||
| Brakes type | Oil Immersed brakes | Multi Plate Oil Immersed Disc Brake | |||
| clutch type | Dual clutch | Independent Double Clutch | |||
| Front Axle | Epicyclic Reduction by Carraro | ||||
| Power Take Off | |||||
| Max PTO (HP) | 43 PTO HP HP | N/A | |||
| PTO RPM @ engine, rpm | 540 RPM @ 1735 RPM | 540@1728 & 540E@1251 RPM | |||
| PTO Type | Live PTO | Economy PTO 540 / 540E | |||
| Steering | |||||
| Steering type | Manual Steering | Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 2300 kg Kg | N/A | |||
| 3 Point Linkage | CAT I, Top link sensing | N/A | |||
| Dimensions & Weight | |||||
| Ground Clearance | 430 mm Nm | 460 Nm | |||
| Total Weight | 1975 kg Kg | 1985 Kg | |||
| Turning radius With Brake | 3000 mm Nm | N/A | |||
| Overall Length | 3200 mm mm | 3270 mm | |||
| Overall Width | 1700 mm mm | 1810 mm | |||
| Wheel Base | 1930 mm mm | 1885 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 8x18 / 9.5 x18 Deep lug | ||||
| Tyre Size Rear | 13.6X28 Agri / 14.9 x 28 Deep lug | ||||
| Electrical | |||||
| Battery Capacity | 12 V 80 Ah AH | N/A | |||
| Alternator | 12V, 36A | N/A | |||
