Mahindra Yuvo 415 DI and Swaraj 834 FE
Mahindra Yuvo 415 DI
40 HP
6.35 Lakh - 6.9 Lakh
|

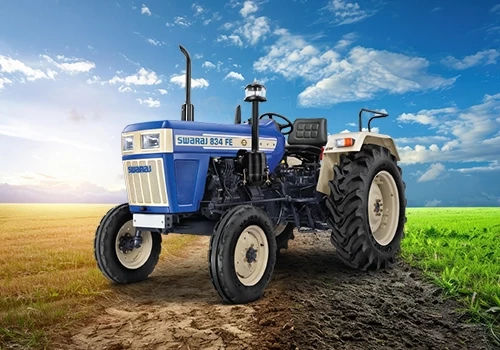

Swaraj 834 FE
40 HP
5.90 Lakh - 6.50 Lakh
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | N/A | Water Cooled, Direct Injection Diesel Engine | |||
| Engine rated RPM | 2000 RPM | 1900 rpm RPM | |||
| HP Category | 40 HP | 40 HP HP | |||
| Displacement CC in | 2730 CC | 2730 cc CC | |||
| No. of cylinder | 4 Cylinder | 3 Cylinder | |||
| Max Torque - Nm | 158 Nm | NA Nm | |||
| Air Cleaner / Filter | Dry type | 3 Stage Wet Air Cleaner | |||
| Cooling System | N/A | Water Cooled | |||
| Fuel type | Diesel | Diesel | |||
| Power KW | N/A | 29.82–33.09 kW KW | |||
| stroke in (mm) | N/A | 110 mm mm | |||
| Bore in (mm) | N/A | 88.9 mm mm | |||
| Fuel Pump Capacity | N/A | 56 Litres Lit | |||
| Hydraulics | 1500 | N/A | |||
| Transmission | |||||
| Transmission type | Partial Constant Mesh | Sliding Mesh / Partial Constant Mesh | |||
| No. of gears Forward | 12 Forward | 8 Forward | |||
| No. of gears Reverse | 3 Reverse | 2 Reverse | |||
| Speed Forward - kmph | 1.45 - 30.61 Kmph | N/A | |||
| Speed Reverse - kmph | 2.05 - 11.2 Kmph | N/A | |||
| Brakes type | Oil Immersed Brakes | Oil Immersed Brakes | |||
| clutch type | Single clutch dry friction plate | Single Clutch / Optional Dual Clutch | |||
| Gear Box Type | 12 Forward + 3 Reverse | 8F + 2R | |||
| Power Take Off | |||||
| Max PTO (HP) | N/A | 34 HP HP | |||
| PTO RPM @ engine, rpm | 540 RPM | 540 PTO @ 1900 Engine rpm RPM | |||
| Steering | |||||
| Steering type | Manual / Power Steering | Mechanical / Optional Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1500 Kg | 1500 kg Kg | |||
| Dimensions & Weight | |||||
| Ground Clearance | N/A | 400 mm Nm | |||
| Total Weight | 2020 Kg | 1840 kg Kg | |||
| Turning radius Without Brake | N/A | NA mm | |||
| Overall Length | N/A | 3430 mm mm | N/A | ||
| Overall Width | N/A | 1770 mm mm | |||
| Wheel Base | 1925 mm | 1980 mm mm | |||
| Height | N/A | 2215 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 6 x 16 | 6.00 x 16 | |||
| Tyre Size Rear | 13.6 x 28 | 13.6 x 28 | |||
| Wheel Track Front | N/A | 1330 mm | |||
| Wheel Track Rear | N/A | 1405 mm | |||
| Electrical | |||||
| Battery Capacity | N/A | 80 Ah AH | |||
| Battery Type | N/A | 12V, 80 Ah | |||
| Others | |||||
