Mahindra NOVO 755 DI and Tafe 7502 DI
Mahindra NOVO 755 DI
75 HP
12.15 Lakh - 14.5 Lakh
|

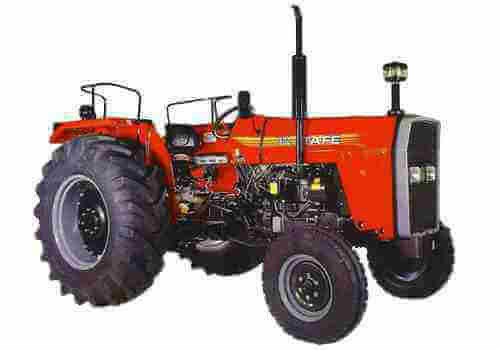

Tafe 7502 DI
75 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | N/A | Four Stroke DI Engine, Water Cooled | |||
| Engine rated RPM | 2100 RPM | 2200 RPM | |||
| HP Category | 75 HP | 75 HP | |||
| Displacement CC in | N/A | 4000 CC | |||
| No. of cylinder | 4 Cylinder | 4 Cylinder | |||
| Air Cleaner / Filter | Dry Type with clog indicator | N/A | |||
| Cooling System | Coolant Cooled | N/A | |||
| Fuel type | Diesel | N/A | |||
| Height | 2160 mm | N/A | |||
| Accessories | N/A | Front Weight, Rear Wheel Weight, Swinging Draw Bar | |||
| Hydraulics | 2600 | N/A | |||
| Transmission | |||||
| Transmission type | Synchromesh | N/A | |||
| No. of gears Forward | 12 Forward | 8 Forward | |||
| No. of gears Reverse | 3 Reverse | 2 Reverse | |||
| Speed Forward - kmph | 1.8 - 36 Kmph | N/A | |||
| Speed Reverse - kmph | 1.8 - 34.4 Kmph | N/A | |||
| Brakes type | Oil immersed multi disc brakes | Oil Immersed Brakes | |||
| clutch type | Dual Diaphragm Type | Dual Clutch | |||
| Gear Box Type | 15 Forward + 3 Reverse | N/A | |||
| Power Take Off | |||||
| Max PTO (HP) | 66 HP | N/A | |||
| PTO RPM @ engine, rpm | N/A | 540 @1790 RPM | |||
| PTO Type | SLIPTO | Single Speed | |||
| PTO Speed | 540/ 540E | N/A | |||
| Steering | |||||
| Steering type | Double Acting Power steering | Hydrostatic Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 2600 Kg | 2050 Kg | |||
| 3 Point Linkage | N/A | Draft, Position And Response Control, Lower Links With Cat 2 | |||
| Dimensions & Weight | |||||
| Total Weight | N/A | 2720 Kg | |||
| Turning radius With Brake | N/A | 3600 Nm | |||
| Overall Length | 3710 mm | 4040 mm | |||
| Overall Width | N/A | 2075 mm | |||
| Wheel Base | 2220 mm | N/A | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 7.5 x 16 / 9.5 x 24 | 7.50 x 16 | |||
| Tyre Size Rear | 16.9 x 28 | 16.9 x 30 | |||
| Electrical | |||||
| Others | |||||
