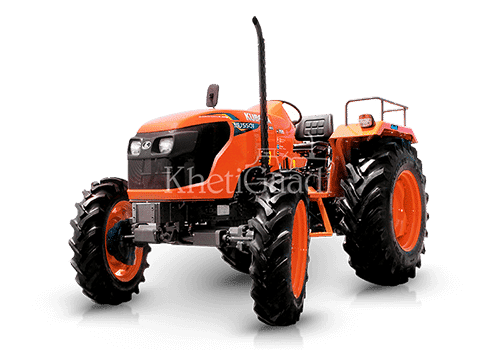

Mahindra 255 DI and Kubota MU5501 4WD
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | MDI1365 | Kubota V2403-M-DI, Inline FIP E-CDIS,4 Cylinder, Liquid Cooled | |||
| Engine rated RPM | 2100 RPM | 2300 RPM | |||
| HP Category | 25 HP | 55 HP | |||
| Displacement CC in | 1360 CC | 2434 CC | |||
| No. of cylinder | 2 Cylinder | 4 Cylinder | |||
| Air Cleaner / Filter | 3 stage oil bath type,pre-clener | Dry Type, Dual Element | |||
| Cooling System | Water Cooled | Liquid Cooled | |||
| Fuel type | Diesel | Diesel | |||
| Height | 1822 mm | N/A | |||
| Accessories | N/A | Tool, Toplink, Canopy, Hook, Bumpher, Drawbar | |||
| Hydraulics | 1220 | 1800 | |||
| Transmission | |||||
| Transmission type | Sliding mesh | Synchromesh | |||
| No. of gears Forward | 8 Forward | 8 Forward | |||
| No. of gears Reverse | 2 Reverse | 4 Reverse | |||
| Speed Forward - kmph | 31.5 Kmph | 3 - 31 Kmph | |||
| Speed Reverse - kmph | 13.98 Kmph | 5 - 13 Kmph | |||
| Brakes type | Dry disc | Oil Immersed Disc Brakes | |||
| clutch type | Heavy Duty Diaphragm type | Double Clutch | |||
| Gear Box Type | 8 Forward + 2 Reverse | N/A | |||
| Front Axle | N/A | Fixed Thread 4WD | |||
| Power Take Off | |||||
| Max PTO (HP) | 22 HP | 46.8 HP | |||
| PTO RPM @ engine, rpm | 540 RPM | 540/750 RPM | |||
| PTO Type | N/A | Independent, Dual PTO/Rev. PTO* | |||
| Steering | |||||
| Steering type | Mechanical | Power Steering (Hydraulic Double acting) | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1220 Kg | 1800 Kg | |||
| Dimensions & Weight | |||||
| Ground Clearance | N/A | 415 Nm | |||
| Total Weight | N/A | 2380 Kg | |||
| Turning radius With Brake | N/A | 3000 Nm | |||
| Overall Length | 3070 mm | 3250 mm | |||
| Overall Width | N/A | 1850 mm | |||
| Wheel Base | 1822 mm | 2050 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 6 x 16 | 9.5 x 24 | |||
| Tyre Size Rear | 12.4 x 28 | 16.9 x 28 | |||
| Electrical | |||||
| Battery Capacity | 12 V 88 Ah AH | 12 V AH | |||
| Alternator | N/A | 40 | |||
| Others | |||||
