Kubota
Kubota MU 5502 4WD and VST Shakti MT 270 VIRAAT 4W
Kubota MU 5502 4WD
50 HP
11.81 Lakh - 12.37 Lakh
|

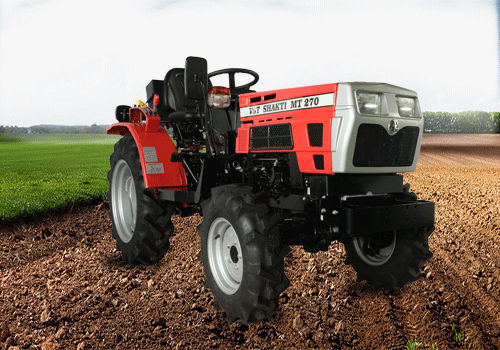

VST Shakti MT 270 VIRAAT 4W
27 HP
5.51 Lakh - 5.90 Lakh
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | N/A | TREM IIIA, NATURALLY ASPIRATED 4 STROKE ENGINE | |||
| Engine rated RPM | 2200 RPM | 2800 RPM | |||
| HP Category | 50 HP | 27 HP | |||
| Displacement CC in | 2434 CC | 1306 CC | |||
| No. of cylinder | 4 Cylinder | 4 Cylinder | |||
| Max Torque - Nm | 35% Nm | 72 Nm | |||
| Air Cleaner / Filter | Dry type, Dual element | Dry Type | |||
| Cooling System | Liquid Cooled | Forced Coolant Circulation | |||
| Fuel type | N/A | High Speed Diesel | |||
| stroke in (mm) | N/A | 78 mm | |||
| Bore in (mm) | N/A | 73 mm | |||
| Fuel Pump Capacity | N/A | 18 L Lit | |||
| Dry Weight kg | N/A | 145 Kg | |||
| Height | N/A | 1320 mm | |||
| Starter Motor | N/A | 12 V 2 | |||
| Shifting Type | N/A | SIDE SHIFT | |||
| Hydraulics | N/A | AUTOMATIC DRAET AND DEPTH CONTROL | |||
| Transmission | |||||
| Transmission type | Main Transmission Synchromesh | CONSTANT MESH | |||
| No. of gears Forward | 12 Forward Forward | 8 Forward | |||
| No. of gears Reverse | 4 Reverse Reverse | 2 Reverse | |||
| Speed Forward - kmph | 1.8- 30.8 Kmph | 1.96-19.81 Kmph | |||
| Speed Reverse - kmph | 5.1 - 14 Kmph | 2.49-7.57 Kmph | |||
| Brakes type | Oil Immersed Multi Disc Brakes | OIL IMMERSED DISC BRAKES | |||
| clutch type | Double Clutch | SINGLE DRY FRICTION PLATE | |||
| Gear Box Type | 12 Forward + 4 Reverse | 8 Forward + 2 Reverse | |||
| Power Take Off | |||||
| PTO RPM @ engine, rpm | "STD : 540 @2160 ERPM ECO : 750 @2200 ERPM " RPM | 540 RPM | |||
| PTO Type | Independent, Dual PTO | DUAL SPEED РТO | |||
| PTO Speed | N/A | 540 & 540E | |||
| Steering | |||||
| Steering type | Power (Hydraulic double acting) | Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1,800 kgf and 2,100 kgf at lift point Kg | 750 Kg | |||
| 3 Point Linkage | N/A | CAT-1 | |||
| Dimensions & Weight | |||||
| Ground Clearance | 415 MM Nm | 255 Nm | |||
| Total Weight | 2560 Kg | 980 Kg | |||
| Turning radius With Brake | 2.9 Nm | 2.3 Nm | |||
| Turning radius Without Brake | N/A | 2700 mm | |||
| Overall Length | 3715 mm | 2845 mm | |||
| Overall Width | 1965 mm | 920 mm | |||
| Wheel Base | 2050 mm | 1420 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 9.5 x 24 | 6 x 12 | |||
| Tyre Size Rear | 16.9 X 28 | 8.3 x 20 | |||
| Type Front | NA | N/A | |||
| Type Rear | NA | N/A | |||
| Electrical | |||||
| Battery Capacity | 12 V 55 AH | N/A | |||
| Alternator | N/A | 12 V 40 A | |||
