John Deere 5050 E and Kubota MU 5002 2WD
John Deere 5050 E
50 HP
7 Lakh - 7.3 Lakh
|

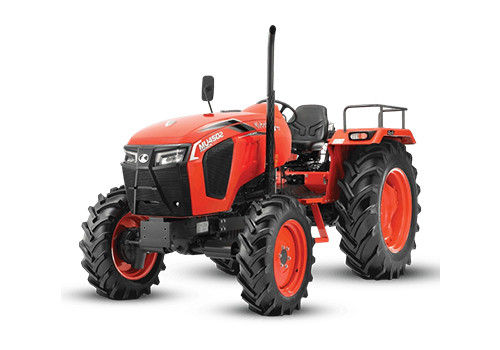

Kubota MU 5002 2WD
50 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | Direct Injection, Turbo Charged, Inline FIP, Coolant Cooled With Over Flow Reservoir | Four Stroke Liquid Cooled Diesel Engine | |||
| Engine rated RPM | 2400 RPM | 2600 RPM | |||
| HP Category | 50 HP | 50 HP | |||
| No. of cylinder | 3 Cylinder | 4 Cylinder | |||
| Air Cleaner / Filter | Dry Type, Dual Element | Dry Type, Dual Element | |||
| Cooling System | Coolant Cooled With Overflow Reservoir | N/A | |||
| Fuel type | Diesel | N/A | |||
| Power KW | N/A | 36 kw KW | |||
| Fuel Pump Capacity | N/A | 60 L Lit | |||
| Starter Motor | 2.5 | N/A | |||
| Hydraulics | 1800 | N/A | |||
| Transmission | |||||
| Transmission type | Collarshift | Synchromesh | |||
| No. of gears Forward | 9 Forward | 12 F Forward | |||
| No. of gears Reverse | 3 Reverse | 4 R Reverse | |||
| Speed Forward - kmph | 2.7 - 30.1 Kmph | 2.1 km/h-34.5 km/h Kmph | |||
| Speed Reverse - kmph | 3.7 - 23.2 Kmph | N/A | |||
| Brakes type | Oil Immersed Disc Brakes | Oil Immersed Brakes (OIB) | |||
| clutch type | Dual Clutch | Dual | |||
| Gear Box Type | 9 Forward + 3 Reverse Collarshift | N/A | |||
| Front Axle | N/A | Fixed Axle | |||
| Power Take Off | |||||
| Max PTO (HP) | 42.5 HP | 50 HP | |||
| PTO RPM @ engine, rpm | 540@ 2376 RPM | N/A | |||
| PTO Type | Independent, 6 Splines | Independent PTO | |||
| PTO Speed | N/A | 540 RPM & 750 RPM | OPT:540 RPM & REV. PTO | |||
| Steering | |||||
| Steering type | Power Steering | Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1800 Kg | 1640 kg Kg | |||
| 3 Point Linkage | Category II, Automatic Depth & Draft Control | N/A | |||
| Type | N/A | Pompa Lift | |||
| Dimensions & Weight | |||||
| Ground Clearance | 440 Nm | 415 mm Nm | |||
| Total Weight | 2105 Kg | N/A | |||
| Turning radius With Brake | 3181 Nm | N/A | |||
| Overall Length | 3540 mm | 3630 mm mm | |||
| Overall Width | 1820 mm | 1850 mm mm | |||
| Wheel Base | 2050 mm | 2000 mm mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 6.0 x 16 mm, 8 | 6.0x16/7.5x16 inch | |||
| Tyre Size Rear | 14.9 x 28 mm, 12 | 14.9x28 inch | |||
| Electrical | |||||
| Battery Capacity | 12 V 88 Ah AH | N/A | |||
| Alternator | 12 V 40 A | N/A | |||
| Others | |||||
