Force Motors
Force Motors Sanman-5000 and Kubota MU4501

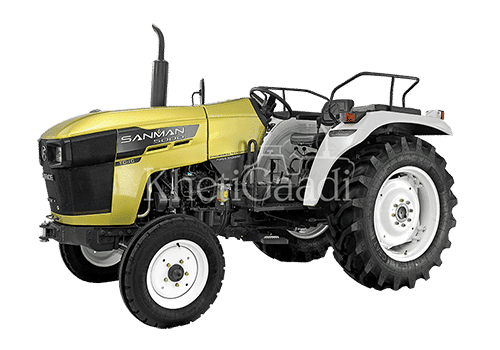

Force Motors Sanman-5000
45 HP
7.66 Lakh - 7.93 Lakh
|
Kubota MU4501
45 HP
8.58 Lakh - 8.69 Lakh
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | 4 Stroke, Inline Direct Injection Turbo Charger With Intercooler | Kubota V2403-M-DI-E3, Inline FIP4 Cylinder, Liquid Cooled | |||
| Engine rated RPM | 2200 RPM | 2500 RPM | |||
| HP Category | 45 HP | 45 HP | |||
| Displacement CC in | N/A | 2434 CC | |||
| No. of cylinder | 3 Cylinder | 4 Cylinder | |||
| Air Cleaner / Filter | N/A | Dry Type, Dual Element | |||
| Cooling System | Water Cooled | Liquid Cooled | |||
| Fuel type | Diesel | Diesel | |||
| Height | 3600 mm | 1850 mm | |||
| Starter Motor | N/A | 2.2 | |||
| Hydraulics | 1450 | 1640 | |||
| Transmission | |||||
| Transmission type | Synchromesh | Synchromesh | |||
| No. of gears Forward | 8 Forward | 8 Forward | |||
| No. of gears Reverse | 4 Reverse | 4 Reverse | |||
| Speed Forward - kmph | N/A | 3.0 - 30.8 Kmph | |||
| Speed Reverse - kmph | N/A | 3.9 - 13.8 Kmph | |||
| Brakes type | Fully Oil Immersed Multiplate Sealed Disk Breaks | Oil Immersed Disc Brakes | |||
| clutch type | Dual, Dry Mechanical Actuation | Double Clutch | |||
| Gear Box Type | 8 Forward + 4 Reverse | 8 Forward + 4 Reverse | |||
| Front Axle | N/A | Variable Front Axle | |||
| Power Take Off | |||||
| Max PTO (HP) | N/A | 38.3 HP | |||
| PTO RPM @ engine, rpm | 540 and 1000 RPM | 540/750 RPM | |||
| PTO Type | N/A | Independent, Dual PTO | |||
| Steering | |||||
| Steering type | Power Steering | Hydraulic Double Acting Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1450 Kg | 1640 Kg | |||
| 3 Point Linkage | ADDC System with Bosch Control Valve, CAT- II | N/A | |||
| Dimensions & Weight | |||||
| Ground Clearance | 365 Nm | 405 Nm | |||
| Total Weight | 2020 Kg | 1850 Kg | |||
| Turning radius With Brake | N/A | 2800 Nm | |||
| Overall Length | N/A | 3100 mm | |||
| Overall Width | N/A | 1865 mm | |||
| Wheel Base | 2032 mm | 1990 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 6.00 x 16 | 6.00 x 16 / 7.5 x 16 | |||
| Tyre Size Rear | 13.6 x 28 | 13.6 x 28 / 14.9 x 28 | |||
| Electrical | |||||
| Battery Capacity | N/A | 12 AH | |||
| Alternator | N/A | 40 Amp | |||
| Others | |||||
