Force Motors

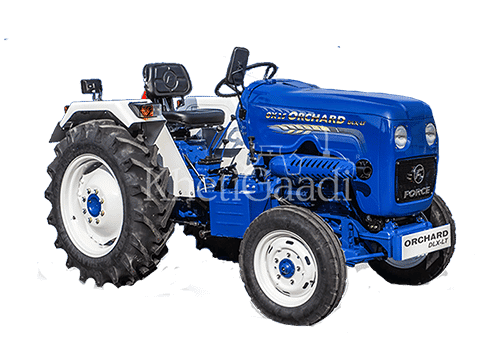

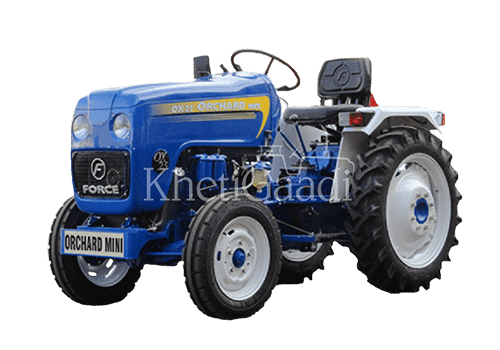

Force Motors Orchard Mini and Force Motors Orchard DLX LT

Engine
Engine type	4 Stroke, Inline, Direct Injection	4 Stroke, Inline, Direct Injection
Engine rated RPM	2200 RPM	2200 RPM
HP Category	27 HP	27 HP
Displacement CC in	1947 CC	1947 CC
No. of cylinder	3 Cylinder	3 Cylinder
Max Torque - Nm	86.7 Nm	N/A
Air Cleaner / Filter	Dry Type	Dry Type
Cooling System	Water Cooled	Water Cooled
Fuel type	Diesel	Diesel
Hydraulics	950	1000
Transmission
Transmission type	Easy Shift Constant Mesh	Easy Shift Constant Mesh
No. of gears Forward	8 Forward	8 Forward
No. of gears Reverse	4 Reverse	4 Reverse
Brakes type	Fully Oil Immersed Multiplate Sealed Disc Brakes	Fully Oil Immersed Multiplate Sealed Disc Brakes
clutch type	Dry, Single Clutch Plate	Dry, Dual Clutch Plate
Gear Box Type	8 Forward + 4 Reverse	8 Forward + 4 Reverse
Power Take Off
Max PTO (HP)	N/A	23 HP
PTO RPM @ engine, rpm	540 & 1000 RPM	540 & 1000 RPM
Steering
Steering type	Mechanical Steering	Mechanical / Power Steering
Hydraulic
Lifting Capacity Max.	950 Kg	1000 Kg
3 Point Linkage	Category 1 N (Narrow)	Category II
Type	A.D.D.C System with Bosch Control Valve	N/A
Dimensions & Weight
Ground Clearance	235 Nm	277 Nm
Total Weight	1395 Kg	1525 Kg
Turning radius With Brake	2400 Nm	2500 Nm
Overall Length	2840 mm	2985 mm
Overall Width	1150 mm	1580 mm
Wheel Base	1590 mm	1590 mm
Wheels & Tyres
Tyre Size Front	5.00 x 15	5.00 x 15
Tyre Size Rear	8.3 x 24	11.2 x 24
Electrical
Battery Capacity	12 V 70 Ah AH	12 V 75 Ah AH
Alternator	14 V 23 A	14 V 23 A
Battery Type	Lead Acid	Lead Acid
