Farmtrac
Farmtrac ATOM 26 and ACE Veer 3000 4WD
Farmtrac ATOM 26
26 HP
5.6 Lakh - 5.8 Lakh
|

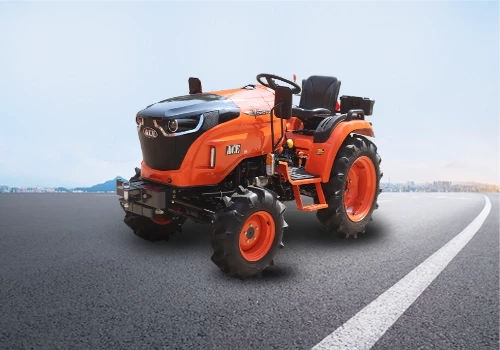

ACE Veer 3000 4WD
26 HP
8.5 Lakh - 10 Lakh
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | NA | N/A | |||
| Engine rated RPM | 3000 RPM RPM | 1800 RPM | |||
| HP Category | 26 HP HP | 26 HP | |||
| Displacement CC in | NA CC | 1318 CC | |||
| No. of cylinder | 3 Cylinder | 3 Cylinder | |||
| Max Torque - Nm | NA Nm | 79.4 Nm | |||
| Air Cleaner / Filter | Dry Type | dry-type | |||
| Cooling System | N/A | water-cooled | |||
| Emission standard | N/A | Bharat (TREM) Stage IV | |||
| Fuel type | Diesel | diesel | |||
| Fuel Pump Type | NA | rotary | |||
| Power KW | NA KW | 19.9 KW | |||
| stroke in (mm) | NA mm | 92 mm | |||
| Bore in (mm) | NA mm | 78 mm | |||
| Fuel Pump Capacity | 24 ltrs Lit | 25 Lit | |||
| Dry Weight kg | N/A | 1000 Kg | |||
| Height | NA mm | 2200 mm | |||
| Starter Motor | NA | electric | |||
| Accessories | NA | Toolbox , Top Link , Drawbar , Hitch , Ballast Weights | |||
| Shifting Type | N/A | Constant Mesh transmission | |||
| Hydraulics | N/A | 800 | |||
| Cylinder Capacity cc | N/A | 1318 CC | |||
| Transmission | |||||
| Transmission type | Constant Mesh | Constant Mesh | |||
| No. of gears Forward | 9 Forward | 6 Forward | |||
| No. of gears Reverse | 3 Reverse | 2 Reverse | |||
| Speed Forward - kmph | 1.3 - 22.3 Kmph Kmph | 2.2 to 23.1 Kmph | |||
| Speed Reverse - kmph | 1.8 - 11.1 Kmph Kmph | 6.31 Kmph | |||
| Brakes type | Multi Plate Oil Immersed Brakes | oil-immersed disc | |||
| clutch type | Single Clutch | single | |||
| Gear Box Type | 9 Forward + 3 Reverse | 6 Forward + 2 Reverse | |||
| Front Axle | Mud And Water Sealed 4WD Axle | 4WD | |||
| Rear Axle | Inboard Axle | 4WD | |||
| Linkage Category | N/A | Category I | |||
| Power Take Off | |||||
| Max PTO (HP) | 20 PTO HP | 22.36 HP | |||
| PTO RPM @ engine, rpm | 540 @2504 And 2035 RPM | 540 RPM | |||
| PTO Type | 540 And 540 E | Dual PTO (540 / 540E) | |||
| PTO Speed | N/A | 540 | |||
| Steering | |||||
| Steering Column | N/A | power steerin | |||
| Steering type | Balanced Power Steering | NA | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 750 kg Kg | 800 Kg | |||
| 3 Point Linkage | NA | Category I | |||
| Spool Valve | NA | Directional Control Valve (DCV) | |||
| Type | NA | 4WD | |||
| Pump Type | N/A | rotary | |||
| Lower Link | N/A | Category I | |||
| Dimensions & Weight | |||||
| Ground Clearance | 300 mm Nm | 300 Nm | |||
| Total Weight | 900 kg Kg | 1000 Kg | |||
| Turning radius With Brake | 1900 mm Nm | 2.1 meters Nm | |||
| Turning radius Without Brake | N/A | 2.5 meters mm | |||
| Overall Length | 2260 mm mm | 2750 mm | |||
| Overall Width | 990 mm mm | 1170 mm | |||
| Wheel Base | 1430 mm mm | 1365 mm | |||
| Height | NA | 1300 | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 6.00 X 12 | 6.00 X 12 | |||
| Tyre Size Rear | 8.3 X 20 | 8.3 X 20 | |||
| Type Front | N/A | NA | |||
| Type Rear | N/A | NA | |||
| Type | N/A | 4WD | |||
| Wheel Track Front | N/A | 960 | |||
| Wheel Track Rear | N/A | 900 | |||
| Electrical | |||||
| Battery Capacity | NA AH | 65 Ah, 12 V AH | |||
| Alternator | NA | 12 V, 42 A | |||
| Battery Type | N/A | lead-acid | |||
| Horn | N/A | NA | |||
| Indicator & Gauge | N/A | NA | |||
| Electrical System | N/A | NA | |||
| Electrical Overview | N/A | NA | |||
| Others | |||||
| Blow Rating | N/A | NA | |||
| Tractor Detail | N/A | NA | |||
| Accessories | N/A | NA | |||
| Special Application | N/A | NA | |||
