Farmtrac
Farmtrac 6055 T20 and FARMTRAC 60 POWERMAXX

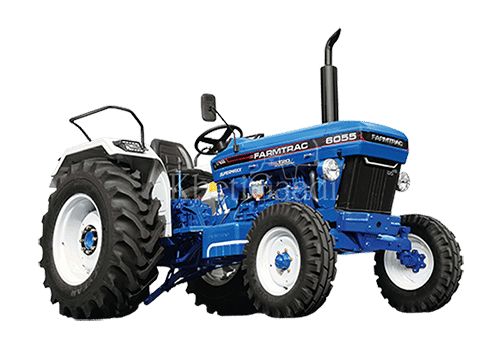

Farmtrac 6055 T20
55 HP
|
FARMTRAC 60 POWERMAXX
55 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine rated RPM | 1850 RPM | 2000 RPM | |||
| HP Category | 55 HP | 55 HP | |||
| Displacement CC in | 3680 CC | 3510 CC | |||
| No. of cylinder | 4 Cylinder | 3 Cylinder | |||
| Air Cleaner / Filter | Dry Type Dual element | N/A | |||
| Cooling System | Water Cooled | N/A | |||
| Emission standard | Bhart term IIIA | N/A | |||
| Fuel type | Diesel | Diesel | |||
| Fuel Pump Type | Inline | N/A | |||
| Power KW | 36.9 KW | N/A | |||
| stroke in (mm) | 122 mm | N/A | |||
| Bore in (mm) | 98 mm | Bore in (mm) mm | |||
| Starter Motor | 12 V, 2.2 KW | 14.9 x 28/16.9 x 28 | |||
| Hydraulics | 1800 | 2500 | |||
| Transmission | |||||
| Transmission type | Side Shift/Center Shift | Constant Mesh | |||
| No. of gears Forward | 16 Forward | 16 Forward | |||
| No. of gears Reverse | 4 Reverse | 4 Reverse | |||
| Speed Forward - kmph | 2.7 - 30.7 Kmph | 2.4 - 34.8 Kmph | |||
| Speed Reverse - kmph | 4.4 - 14.4 Kmph | 3.5 - 15.8 Kmph | |||
| Brakes type | Multi Plate Oil Immersed Brakes | Oil Immersed Brakes | |||
| clutch type | Dual/Independent Clutch | Dual/Independent Clutch | |||
| Gear Box Type | 16 Forward + 4 Reverse Constant Mesh | 16 Forward + 4 Reverse | |||
| Front Axle | Adjustable Axle | Adjustable Front Axle | |||
| Rear Axle | Epicyclic Reduction | N/A | |||
| Power Take Off | |||||
| Max PTO (HP) | 46.8 HP | 49 HP | |||
| PTO RPM @ engine, rpm | 540 RPM @1810 RPM | N/A | |||
| PTO Type | Single 540/MRPTO | 540 & MRPTO | |||
| Steering | |||||
| Steering type | Balanced Power Steering | Balanced Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1800 Kg | 2500 Kg | |||
| 3 Point Linkage | Cat I & II | N/A | |||
| Spool Valve | Double Acting Spool Valve | N/A | |||
| Type | ADDC | Live, ADDC | |||
| Dimensions & Weight | |||||
| Ground Clearance | 430 Nm | 390 Nm | |||
| Total Weight | 2360 Kg | 2280 Kg | |||
| Turning radius With Brake | 4250 Nm | 6500 Nm | |||
| Turning radius Without Brake | 3620 mm | N/A | |||
| Overall Length | 3600 mm | 3445 mm | |||
| Overall Width | 1890 mm | 1845 mm | |||
| Wheel Base | 2255 mm | 2090 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 7.5 x 16 | N/A | |||
| Tyre Size Rear | 14.9 x 28/16.9 x 28 | 7.5 x 16 | |||
| Type Front | 1385 | N/A | |||
| Type Rear | 1440 | N/A | |||
| Electrical | |||||
| Battery Capacity | 12 V, 88 Ah AH | N/A | |||
| Alternator | 12 V, 3 5A | N/A | |||
| Battery Type | Lead Acid | N/A | |||
| Others | |||||
