Farmtrac
Farmtrac 6050 and Farmtrac 50 Smart Supermaxx
Farmtrac 6050
50 HP
|

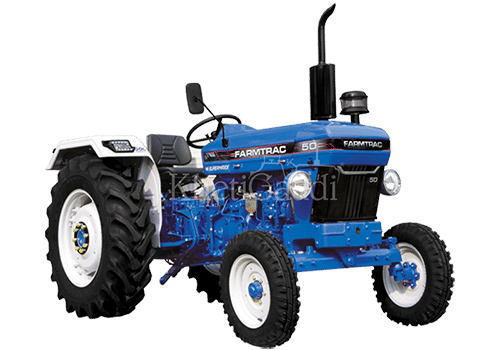

Farmtrac 50 Smart Supermaxx
50 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine rated RPM | 1850 RPM | 2200 RPM | |||
| HP Category | 50 HP | 50 HP | |||
| Displacement CC in | N/A | 2200 CC | |||
| No. of cylinder | 3 Cylinder | 3 Cylinder | |||
| Air Cleaner / Filter | Dry Type | N/A | |||
| Fuel type | Diesel | Diesel | |||
| Hydraulics | 1800 | 1800 | |||
| Transmission | |||||
| Transmission type | N/A | Constant Mesh | |||
| No. of gears Forward | 8 Forward | 8 Forward | |||
| No. of gears Reverse | 2 Reverse | 2 Reverse | |||
| Speed Forward - kmph | 2.7 - 30.6 Kmph | 2.8 - 32.8 Kmph | |||
| Speed Reverse - kmph | 3.0 - 10.9 Kmph | 4.3 - 15.4 Kmph | |||
| Brakes type | Multi Plate Oil Immersed Brakes | Multi Plate Oil Immersed Brakes | |||
| clutch type | Single/Dual Clutch | Dual Clutch | |||
| Gear Box Type | 8 Forward + 2 Reverse | 8 Forward + 2 Reverse | |||
| Front Axle | N/A | Adjustable Axle | |||
| Rear Axle | N/A | Straight Axle | |||
| Power Take Off | |||||
| Max PTO (HP) | 42.5 HP | N/A | |||
| PTO RPM @ engine, rpm | 540 RPM | 540 @1810 RPM | |||
| PTO Type | 540 And Multi Speed Reverse PTO | 540 & Multi Speed Reverse PTO | |||
| PTO Speed | N/A | 1810 | |||
| Steering | |||||
| Steering type | Power/Mechanical Steering | Balanced Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1800 Kg | 1800 Kg | |||
| Spool Valve | N/A | Singe Acting Directional Control Valve | |||
| Type | ADDC | N/A | |||
| Dimensions & Weight | |||||
| Ground Clearance | 390 Nm | 377 Nm | |||
| Total Weight | 2180 Kg | 1950 Kg | |||
| Turning radius With Brake | 3500 Nm | 3250 Nm | |||
| Overall Length | 3485 mm | 3340 mm | |||
| Overall Width | 1810 mm | 1870 mm | |||
| Wheel Base | 2120 mm | 2125 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 7.5 x 16 | 6.5 x 16 | |||
| Tyre Size Rear | 14.9 x 28 | 14.9 x 28 | |||
| Electrical | |||||
| Others | |||||
