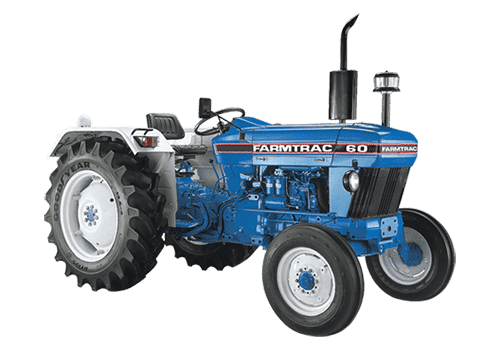

Farmtrac 60 Classic Valuemaxx
Farmtrac 60 Classic Valuemaxx
47 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine rated RPM | 2000 RPM | ||||
| HP Category | 47 HP | ||||
| No. of cylinder | 3 Cylinder | ||||
| Fuel type | Diesel | ||||
| Hydraulics | 1800 / 1500 | ||||
| Transmission | |||||
| Transmission type | Full Constant Mesh | ||||
| No. of gears Forward | 8 Forward | ||||
| No. of gears Reverse | 2 Reverse | ||||
| Speed Forward - kmph | 2.8 - 29.7 Kmph | ||||
| Speed Reverse - kmph | 4.0 - 14.3 Kmph | ||||
| Brakes type | Multi Plate Oil Immersed Disc Brakes/Multi Plate Dry Disc Brakes | ||||
| clutch type | Single Clutch | ||||
| Gear Box Type | 8 Forward + 2 Reverse Full Constant Mesh | ||||
| Front Axle | Fixed/Adjustable Axle | ||||
| Rear Axle | Straight Axle | ||||
| Power Take Off | |||||
| PTO RPM @ engine, rpm | 540 @1710 RPM | ||||
| PTO Type | Single 540 | ||||
| Steering | |||||
| Steering type | Mechanical - Single Drop /Power Steering | ||||
| Hydraulic | |||||
| Lifting Capacity Max. | 1800 / 1500 Kg | ||||
| Dimensions & Weight | |||||
| Ground Clearance | 370 Nm | ||||
| Total Weight | 1840 Kg | ||||
| Turning radius With Brake | 3500 Nm | ||||
| Overall Length | 3355 mm | ||||
| Overall Width | 1735 mm | ||||
| Wheel Base | 2110 mm | ||||
| Wheels & Tyres | |||||
| Tyre Size Front | 6.0 x 16 | ||||
| Tyre Size Rear | 13.6 x 28 | ||||
| Electrical | |||||
| Others | |||||
