Farmtrac

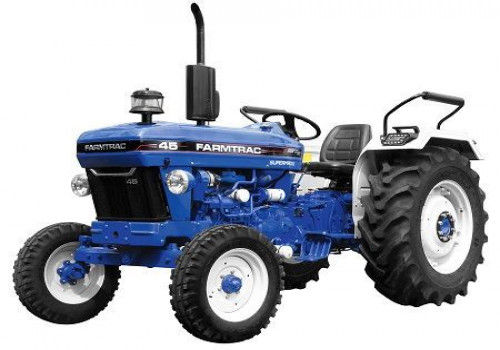

Farmtrac 45 Smart Supermaxx
Farmtrac 45 Smart Supermaxx
48 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine rated RPM | 2000 RPM | ||||
| HP Category | 48 HP | ||||
| No. of cylinder | 3 Cylinder | ||||
| Air Cleaner / Filter | Wet type | ||||
| Fuel type | Diesel | ||||
| Hydraulics | 1800 | ||||
| Transmission | |||||
| No. of gears Forward | 8 Forward | ||||
| No. of gears Reverse | 2 Reverse | ||||
| Speed Forward - kmph | 2.5-32.1 Kmph | ||||
| Speed Reverse - kmph | 3.7-14.2 Kmph | ||||
| Brakes type | Multi Plate Oil Immersed Brakes | ||||
| clutch type | Dual Clutch | ||||
| Gear Box Type | 8F+2R Full Constant Mesh | ||||
| Front Axle | Adjustable Axle | ||||
| Rear Axle | Straight Axle | ||||
| Power Take Off | |||||
| PTO Type | 540 & Multi Speed Reverse | ||||
| PTO Speed | 1810 | ||||
| Steering | |||||
| Steering type | Balanced Power Steering | ||||
| Hydraulic | |||||
| Lifting Capacity Max. | 1800 Kg | ||||
| Spool Valve | Singe Acting Directional Control Valve | ||||
| Dimensions & Weight | |||||
| Ground Clearance | 377 Nm | ||||
| Total Weight | 1950 Kg | ||||
| Overall Length | 3340 mm | ||||
| Overall Width | 1870 mm | ||||
| Wheel Base | 2125 mm | ||||
| Wheels & Tyres | |||||
| Tyre Size Front | 6.0 X 16 | ||||
| Tyre Size Rear | 13.6 X 28 | ||||
| Electrical | |||||
| Others | |||||
