Escorts
Escorts Powertrac ALT 3500 and Powertrac 435 Plus

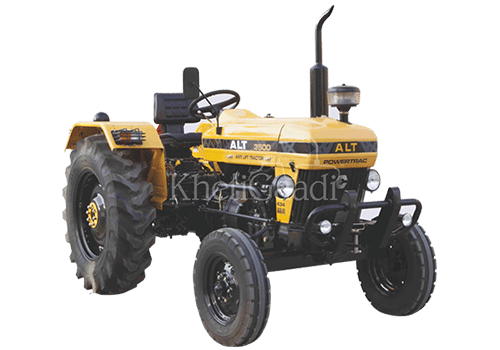

Escorts Powertrac ALT 3500
37 HP
5.8 Lakh - 6.5 Lakh
|
Powertrac 435 Plus
37 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine rated RPM | 2200 RPM | 2200 RPM | |||
| HP Category | 37 HP | 37 HP | |||
| Displacement CC in | 2146 CC | 2146 CC | |||
| No. of cylinder | 3 Cylinder | 3 Cylinder | |||
| Air Cleaner / Filter | N/A | Oil Bath Type | |||
| Cooling System | N/A | Water Cooled | |||
| Fuel type | Diesel | Diesel | |||
| Hydraulics | N/A | 1500/1600 kg Senis-1 | |||
| Transmission | |||||
| Transmission type | Constant Mesh special hub reduction | Center Shift | |||
| No. of gears Forward | 8 Forward | 8 Forward | |||
| No. of gears Reverse | 2 Reverse | 2 Reverse | |||
| Speed Forward - kmph | 2.8-30.9 Kmph | 2.7 - 30.6 Kmph | |||
| Speed Reverse - kmph | 3.7-11.4 Kmph | 3.3 - 10.2 Kmph | |||
| Brakes type | Multi plate OIB | Multi Plate Oil Immersed Disc Brakes | |||
| clutch type | Single Clutch | Single Clutch | |||
| Gear Box Type | N/A | 8 Forward + 2 Reverse | |||
| Front Axle | Fixed-Straight Axle | N/A | |||
| Rear Axle | Hub reduction | Inboard Reduction | |||
| Power Take Off | |||||
| Max PTO (HP) | N/A | 34 HP | |||
| PTO RPM @ engine, rpm | 540 PTO @ engine RPM 1800 RPM | N/A | |||
| PTO Type | Single 540 | N/A | |||
| Steering | |||||
| Steering type | N/A | Power Steering/Mechanical Single Drop Arm Option | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1500 Kg | 1500/1600Senis-1 Kg | |||
| Dimensions & Weight | |||||
| Ground Clearance | 400 Nm | 375 Nm | |||
| Total Weight | 1850 Kg | 1850 Kg | |||
| Overall Length | 3225 mm | 3225 mm | |||
| Overall Width | 1720 mm | 1750 mm | |||
| Wheel Base | 2070 mm | 2010 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 6.0 x 16 | 6.0 x 16 | |||
| Tyre Size Rear | 13.6X28 | 13.6 x 28 | |||
| Electrical | |||||
| Battery Capacity | N/A | 12 V 75 Ah AH | |||
| Alternator | N/A | 12 V 36 Ah | |||
| Others | |||||
