Escorts
Escorts Powertrac 434 and Powertrac 434 DS Super saver

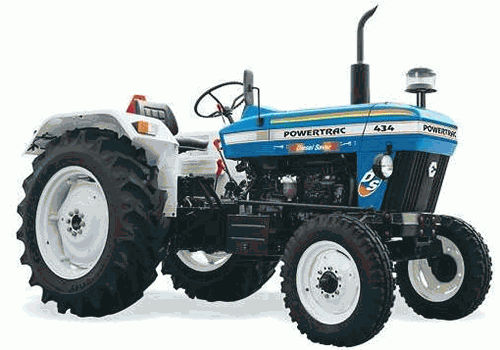

Escorts Powertrac 434
34 HP
6.5 Lakh - 6.8 Lakh
|
Powertrac 434 DS Super saver
34 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine rated RPM | 2200 RPM | 2200 RPM | |||
| HP Category | 34 HP | 33 HP | |||
| Displacement CC in | N/A | 2146 CC | |||
| No. of cylinder | 3 Cylinder | 3 Cylinder | |||
| Air Cleaner / Filter | oil bath type | N/A | |||
| Cooling System | water cooled | Water Cooled | |||
| Fuel type | N/A | Diesel | |||
| Starter Motor | 12V, 2.5 | N/A | |||
| Hydraulics | N/A | 1600 - Sensi-1 | |||
| Transmission | |||||
| Transmission type | Constant Mesh | Constant Mesh With Center Shift | |||
| No. of gears Forward | 8 Forward | 8 Forward | |||
| No. of gears Reverse | 2 Reverse | 2 Reverse | |||
| Speed Forward - kmph | N/A | 2.6 - 30.1 Kmph | |||
| Speed Reverse - kmph | N/A | 3.2 - 10.3 Kmph | |||
| Brakes type | multi plate disc brake | Multi Plate Oil Immersed Disc Brake / Multi Plate Dry Disc Brake Optional | |||
| clutch type | N/A | Single Clutch | |||
| Gear Box Type | N/A | 8 Forward + 2 Reverse | |||
| Front Axle | N/A | Fixed-Straight Axle | |||
| Rear Axle | N/A | Inboard Reduction | |||
| Power Take Off | |||||
| Max PTO (HP) | N/A | 25.5 HP | |||
| PTO RPM @ engine, rpm | 540/1000 RPM | N/A | |||
| PTO Type | Dual | Single 540 | |||
| Steering | |||||
| Steering type | Mechanical - Single Drop Arm | Mechanical Single Drop Arm Option | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1500 Kg | 1300 Kg | |||
| 3 Point Linkage | automatic depth & draft control | N/A | |||
| Dimensions & Weight | |||||
| Ground Clearance | 375 Nm | 375 Nm | |||
| Total Weight | 1805 Kg | 1805 Kg | |||
| Turning radius With Brake | N/A | 3100 Nm | |||
| Overall Length | 3260 mm | 3260 mm | |||
| Overall Width | 1700 mm | 1700 mm | |||
| Wheel Base | 2010 mm | 2010 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 6.00 x 16 | 6.0 x 16 | |||
| Tyre Size Rear | 12.4 x 28 | 12.4x28 / 13.6X28 | |||
| Electrical | |||||
| Battery Capacity | 12V, 75Ah AH | 12 V 75 Ah AH | |||
| Alternator | 12V, 35 A | 12 V 36 A | |||
| Others | |||||
