Escorts Farmtrac Classic 45 (48 HP 14.9T) and Farmtrac 45 Smart Supermaxx
1572856860.png)

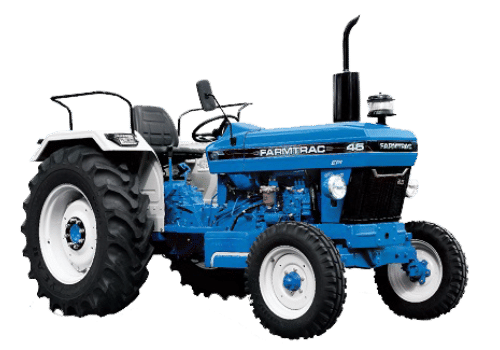

Escorts Farmtrac Classic 45 (48 HP 14.9T)
48 HP
7.75 Lakh - 7.78 Lakh
|
Farmtrac 45 Smart Supermaxx
48 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine rated RPM | 1850 RPM | 2000 RPM | |||
| HP Category | 48 HP | 48 HP | |||
| No. of cylinder | 3 Cylinder | 3 Cylinder | |||
| Air Cleaner / Filter | N/A | Wet type | |||
| Fuel type | N/A | Diesel | |||
| Hydraulics | N/A | 1800 | |||
| Transmission | |||||
| Transmission type | Full Constant Mesh | N/A | |||
| No. of gears Forward | 8 Forward | 8 Forward | |||
| No. of gears Reverse | 2 Reverse | 2 Reverse | |||
| Speed Forward - kmph | 2.7-31.0 Kmph | 2.5-32.1 Kmph | |||
| Speed Reverse - kmph | 4.1-14.5 Kmph | 3.7-14.2 Kmph | |||
| Brakes type | Multi Plate Oil Immersed Disc Brake | Multi Plate Oil Immersed Brakes | |||
| clutch type | Dual Clutch/Single Clutch | Dual Clutch | |||
| Gear Box Type | N/A | 8F+2R Full Constant Mesh | |||
| Front Axle | Adjustable Axle | Adjustable Axle | |||
| Rear Axle | Straight Axle | Straight Axle | |||
| Power Take Off | |||||
| PTO RPM @ engine, rpm | 1810/1592 RPM | N/A | |||
| PTO Type | 540 and Multi Speed Reverse PTO/540 Single | 540 & Multi Speed Reverse | |||
| PTO Speed | N/A | 1810 | |||
| Steering | |||||
| Steering type | Power Steering/Mechanical - Single Drop Arm | Balanced Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1800 Kg | 1800 Kg | |||
| Spool Valve | N/A | Singe Acting Directional Control Valve | |||
| Type | ADDC | N/A | |||
| Dimensions & Weight | |||||
| Ground Clearance | 370 Nm | 377 Nm | |||
| Total Weight | 1990 Kg | 1950 Kg | |||
| Turning radius With Brake | 3250 Nm | N/A | |||
| Overall Length | 3355 mm | 3340 mm | |||
| Overall Width | 1735 mm | 1870 mm | |||
| Wheel Base | 2110 mm | 2125 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 6.0 X 16 | 6.0 X 16 | |||
| Tyre Size Rear | 14.9 X 28 | 13.6 X 28 | |||
| Electrical | |||||
| Others | |||||
