Escorts

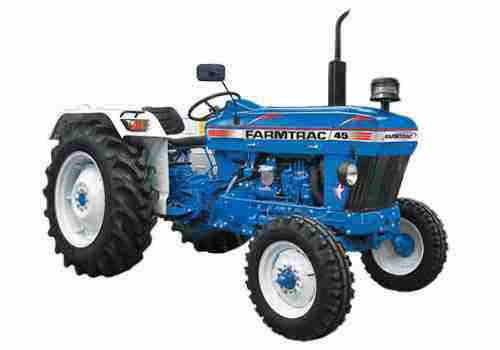

Escorts Farmtrac 45 CL VM PS
Escorts Farmtrac 45 CL VM PS
44 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | NA | ||||
| Engine rated RPM | 1850 RPM | ||||
| HP Category | 44 HP | ||||
| Displacement CC in | 3140 CC | ||||
| No. of cylinder | 3 Cylinder | ||||
| Max Torque - Nm | 186.5 Nm | ||||
| Air Cleaner / Filter | Wet Type | ||||
| Cooling System | Water Cooled | ||||
| Emission standard | Bhart term IIIA | ||||
| Fuel type | Diesel | ||||
| Fuel Pump Type | Inline | ||||
| Power KW | 33.1 KW | ||||
| stroke in (mm) | 106.68 mm | ||||
| Bore in (mm) | 111.76 mm | ||||
| Starter Motor | 12 V, 27 | ||||
| Hydraulics | 1317 | ||||
| Transmission | |||||
| Transmission type | Single Reduction | ||||
| No. of gears Forward | 8 Forward | ||||
| No. of gears Reverse | 2 Reverse | ||||
| Brakes type | Oil Immersed Brakes | ||||
| clutch type | Single clutch - Diaphragm | ||||
| Gear Box Type | 8 Forward + 2 Reverse | ||||
| Front Axle | Semi Adjustable | ||||
| Power Take Off | |||||
| Max PTO (HP) | 38.4 HP | ||||
| PTO RPM @ engine, rpm | 540 RPM | ||||
| PTO Type | Standard - 540 | ||||
| Steering | |||||
| Steering type | Power Steering | ||||
| Hydraulic | |||||
| Lifting Capacity Max. | 1317 Kg | ||||
| 3 Point Linkage | Cat I & II | ||||
| Type | ADDC | ||||
| Dimensions & Weight | |||||
| Ground Clearance | 370 Nm | ||||
| Total Weight | 1865 Kg | ||||
| Turning radius With Brake | 2920 Nm | ||||
| Turning radius Without Brake | 3760 mm | ||||
| Overall Length | 3355 mm | ||||
| Overall Width | 1735 mm | ||||
| Wheel Base | 2110 mm | ||||
| Wheels & Tyres | |||||
| Type Front | 1360 | ||||
| Type Rear | 1350 | ||||
| Electrical | |||||
| Battery Capacity | 12 V, 88 Ah AH | ||||
| Alternator | 12 V, 35 A | ||||
| Battery Type | Lead Acid | ||||
| Others | |||||
