Belarus 451 4WD and Farmtrac 6050 4X4 4WD

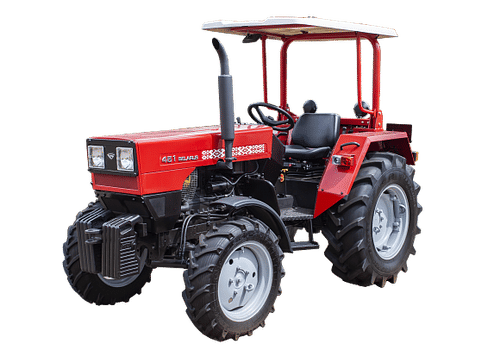

Belarus 451 4WD
50 HP
|
Farmtrac 6050 4X4 4WD
50 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | four-stoke diesel engine | 1850 ERPM Naturally Aspirated | |||
| Engine rated RPM | 3000 RPM | 1850 RPM | |||
| HP Category | 50 HP | 50 HP | |||
| No. of cylinder | 4 Cylinder | 3 Cylinder | |||
| Max Torque - Nm | 125/142.7 Nm | N/A | |||
| Fuel type | N/A | Diesel | |||
| Dry Weight kg | 3000 Kg | N/A | |||
| Hydraulics | 19 | 1800 | |||
| Transmission | |||||
| Transmission type | N/A | Full Constant Mesh | |||
| No. of gears Forward | 16 Forward | 8 Forward | |||
| No. of gears Reverse | 8 Reverse | 2 Reverse | |||
| Speed Forward - kmph | 1.3-40 Kmph | 2.7 - 30.6 Kmph | |||
| Speed Reverse - kmph | 2.3-21.6 Kmph | 3.0 -10.9 Kmph | |||
| Brakes type | Oil immersed brakes | Oil Immersed Brakes | |||
| clutch type | dry, single-disk | Double Clutch | |||
| Gear Box Type | N/A | 8 Forward + 2 Reverse Full Constant Mesh | |||
| Front Axle | N/A | Indegenous 4WD Axle | |||
| Rear Axle | N/A | Epicyclic Reduction | |||
| Power Take Off | |||||
| Max PTO (HP) | 540, 540E, 1000 HP | N/A | |||
| PTO RPM @ engine, rpm | 540 RPM | 540 RPM | |||
| PTO Type | 6 Spline | 540 and Multi Speed Reverse PTO | |||
| Steering | |||||
| Steering type | Power Steering | Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1700 Kg | 1800 Kg | |||
| Spool Valve | N/A | Doubel Acting Spool Valve | |||
| Dimensions & Weight | |||||
| Ground Clearance | N/A | 390 Nm | |||
| Total Weight | 3000 Kg | 2340 Kg | |||
| Turning radius With Brake | N/A | 4350 Nm | |||
| Turning radius Without Brake | 3.8 m mm | N/A | |||
| Overall Length | 3270 mm | 3485 mm | |||
| Overall Width | 1675 mm | 1810 mm | |||
| Wheel Base | 1900 mm | 2150 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 1260, 1410 | 9.5 x 24/8.3 x 24 | |||
| Tyre Size Rear | 1300, 1350, 1450, 1520, 1620 | 16.9 x 28 | |||
| Electrical | |||||
| Others | |||||
