Mahindra Gujarat

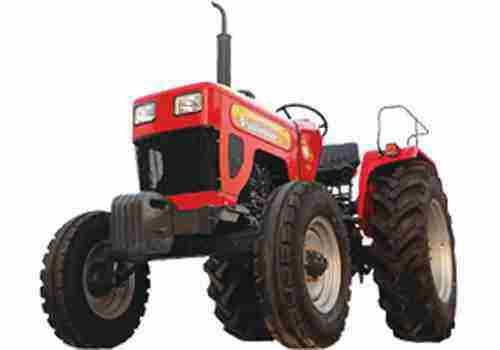

Mahindra Gujrat SHAKTIMAAN-50
Mahindra Gujrat SHAKTIMAAN-50
50 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine rated RPM | 2200 RPM | ||||
| HP Category | 50 HP | ||||
| Displacement CC in | 2697 CC | ||||
| No. of cylinder | 3 Cylinder | ||||
| Air Cleaner / Filter | Oil bath type with cyclone pre- cleaner | ||||
| Power KW | 28.7 KW | ||||
| stroke in (mm) | 110 mm | ||||
| Bore in (mm) | 102 mm | ||||
| Height | 2226 mm | ||||
| Hydraulics | 37 | ||||
| Transmission | |||||
| Transmission type | Combination of Constant & Sliding Mesh | ||||
| No. of gears Forward | 8 Forward | ||||
| No. of gears Reverse | 2 Reverse | ||||
| Brakes type | Oil immersed Brake | ||||
| clutch type | Single dry friction plate/ Dual Clutch (Optional) | ||||
| Power Take Off | |||||
| PTO RPM @ engine, rpm | 600 RPM | ||||
| Steering | |||||
| Steering type | Mechanical Steering / Power Steering (optional) | ||||
| Hydraulic | |||||
| Lifting Capacity Max. | 1300 Kg | ||||
| Type | Hi-tech fully live hydraulic sys.with position & draft control | ||||
| Dimensions & Weight | |||||
| Ground Clearance | 430 Nm | ||||
| Total Weight | 1945 Kg | ||||
| Overall Length | 3250 mm | ||||
| Overall Width | 1840 mm | ||||
| Wheel Base | 2035 mm | ||||
| Wheels & Tyres | |||||
| Tyre Size Front | 7.50 x 16 | ||||
| Tyre Size Rear | 14.9 X 28 | ||||
| Electrical | |||||
