VST Shakti

×

VST Shakti 929 4WD

27 HP

5.67 - 6.18 Lakh

v/s
×

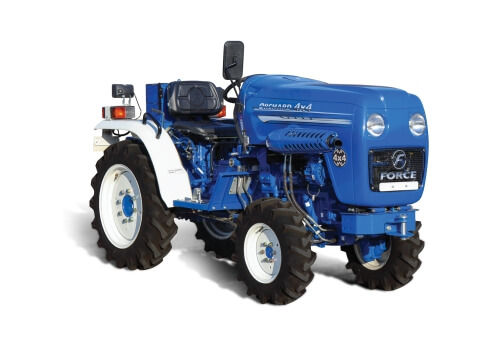

Force Motors ORCHARD 4 x 4

27 HP

6.4 - 6.65 Lakh

v/s
ऍड ट्रॅक्टर
x
ऍड ट्रॅक्टर
x

VST Shakti 929 4WD and Force Motors ORCHARD 4 x 4

	VST Shakti 929 4WD 27 HP 5.67 Lakh - 6.18 Lakh v/s	Force Motors ORCHARD 4 x 4 27 HP 6.4 Lakh - 6.65 Lakh

Engine
Engine type	diesel engine	3 Cylinder,4 stroke,Inline, Direct Injection,Naturally Aspirated
Engine rated RPM	2800 RPM	2200 RPM RPM
HP Category	27 HP	27 HP
Displacement CC in	1331 CC	1947 CC
No. of cylinder	4 Cylinder	3 Cylinder
Max Torque - Nm	84 Nm	N/A
Air Cleaner / Filter	dry type	Dry type
Cooling System	water-cooled	Water Cooled
Emission standard	Stage V	N/A
Fuel type	diesel	Diesel
Fuel Pump Type	rotary	N/A
Power KW	21.6 KW	N/A
stroke in (mm)	72.2 mm	N/A
Bore in (mm)	72.2 mm	N/A
Fuel Pump Capacity	24 Lit	N/A
Dry Weight kg	860 Kg	N/A
Height	2075 mm	N/A
Starter Motor	12V, 2 KW	N/A
Accessories	Front Weights , Rear Weights , Toolbox ,	N/A
Shifting Type	Side Shift	N/A
Hydraulics	Automatic Depth and Draft Control	N/A
Cylinder Capacity cc	1331 CC	N/A
Transmission
Transmission type	fully constant	Constant Mesh
No. of gears Forward	6 Forward	8 Forward
No. of gears Reverse	2 Reverse	4 Reverse
Speed Forward - kmph	1.56 to 20.26 Kmph	N/A
Speed Reverse - kmph	1.35 to 4.9 Kmph	N/A
Brakes type	oil-immersed	Fully Oil Immersed Multiplate sealed disc brakes
clutch type	single dry friction plate	Twin Clutch with independent lever for PTO
Gear Box Type	6 Forward + 2 Reverse	8 Forward + 4 Reverse
Front Axle	heavy-duty 4WD	N/A
Rear Axle	heavy-duty	N/A
Linkage Category	Category-I 3	N/A
Power Take Off
Max PTO (HP)	24 HP	23 PTO HP
PTO RPM @ engine, rpm	540 RPM at 760 RPM	N/A
PTO Type	two-speed power take-off	N/A
PTO Speed	540 RPM at 760	540 &1000
Steering
Steering Column	power steering	N/A
Steering type	NA	Power Steering
Hydraulic
Lifting Capacity Max.	750 Kg	1000 kg (at Lower Hitech Point ) Kg
3 Point Linkage	Category-I 3	Category 1 N (Narrow)
Spool Valve	twin-acting	N/A
Type	4WD	A.D.D.C System with Bosch Control valve
Pump Type	rotary	N/A
Lower Link	Category-I 3	N/A
Dimensions & Weight
Ground Clearance	305 Nm	285 mm Nm
Total Weight	860 Kg	N/A
Turning radius With Brake	2100 Nm	2.5 m ( with Brakes) Nm
Turning radius Without Brake	2.1 mm	2.5 m mm
Overall Length	2530 mm	3010 mm mm
Overall Width	1095 mm	N/A
Wheel Base	1520 mm	1540 mm mm
Height	2075	N/A
Wheels & Tyres
Tyre Size Front	6.00 x 12	185 x 80 mm - D 12
Tyre Size Rear	8.3 x 20	8.3 x 20 mm
Type Front	NA	N/A
Type Rear	NA	N/A
Type	NA	N/A
Wheel Track Front	1095	N/A
Wheel Track Rear	870	N/A
Electrical
Battery Capacity	12V, 48 Ah AH	N/A
Alternator	12V, 40A	N/A
Battery Type	12V, 48 Ah	N/A
Horn	NA	N/A
Indicator & Gauge	NA	N/A
Electrical System	NA	N/A
Electrical Overview	NA	N/A
Others
Blow Rating	NA	N/A
Tractor Detail	NA	N/A
Accessories	NA	N/A
Special Application	NA	N/A

VST Shakti

VST Shakti 929 4WD and Force Motors ORCHARD 4 x 4
