New Holland
New Holland 3032 Nx and Eicher Tractors eicher 330
New Holland 3032 Nx
35 HP
|

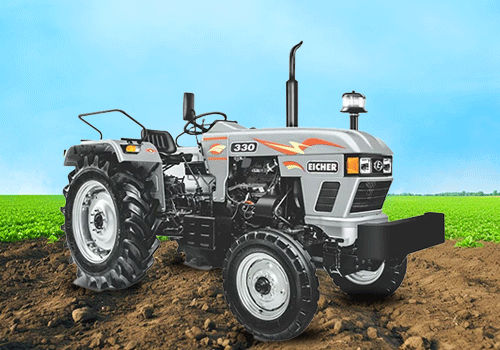

Eicher Tractors eicher 330
35 HP
4.5 Lakh - 4.8 Lakh
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine type | Naturally Aspirated | SIMPSON | |||
| Engine rated RPM | 2000 RPM | 540 RPM | |||
| HP Category | 35 HP | 31-40 HP | |||
| Displacement CC in | 2365 CC | N/A | |||
| No. of cylinder | 3 Cylinder | 3 Cylinder | |||
| Air Cleaner / Filter | Oil Bath with Pre Cleaner | Water cooled | |||
| Cooling System | N/A | Water cooled | |||
| Fuel type | Diesel | Diesel | |||
| Fuel Pump Capacity | N/A | 45 Lit | |||
| Height | N/A | 2206mm mm | |||
| Shifting Type | N/A | Center shift | |||
| Hydraulics | 1500 at 3 Point Linkage | N/A | |||
| Transmission | |||||
| Transmission type | Constant Mesh AFD | Center shift Partial constant mesh | |||
| No. of gears Forward | 8 Forward | 8 Forward | |||
| No. of gears Reverse | 2 Reverse | 2 Reverse | |||
| Speed Forward - kmph | N/A | 29.83 km/h Kmph | |||
| Brakes type | Mechanical, Real Oil Immersed Brakes | Oil Immersed Brakes (OIB) | |||
| clutch type | Single Clutch | Single | |||
| Gear Box Type | 8 Forward + 2 Reverse | N/A | |||
| Rear Axle | Outboard Reduction | N/A | |||
| Power Take Off | |||||
| Max PTO (HP) | 34 HP | N/A | |||
| PTO Type | N/A | Live, Six splined shaft | |||
| PTO Speed | N/A | 540 RPM @ 1525 ERPM | |||
| Steering | |||||
| Steering type | Mechanical/Power Steering | Mechanical steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1500 Kg | 1450 kgf Kg | |||
| 3 Point Linkage | Automatic Depth & Draft Control, Lift- O-Matic, Response Control, Multiple Sensitivity Control, Isolator Valve. | Draft, position and response control Links fitted with CAT-II | |||
| Dimensions & Weight | |||||
| Ground Clearance | 385 Nm | N/A | |||
| Total Weight | 1720 Kg | 1755 kg Kg | |||
| Turning radius With Brake | 2810 Nm | N/A | |||
| Overall Length | 3290 mm | 3470 mm mm | |||
| Overall Width | 1660 mm | 1637 mm mm | |||
| Wheel Base | 1930 mm | 1840 mm mm | |||
| Height | N/A | 2206mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 6.0 x 16 | N/A | |||
| Tyre Size Rear | 12.4 x 28 / 13.6 x 28 | N/A | |||
| Wheel Track Front | 6 in x 16 in | N/A | |||
| Wheel Track Rear | 13.6 in x 28 in | N/A | |||
| Electrical | |||||
| Battery Capacity | 75 Ah AH | 12 V 75 Ah Battery AH | |||
| Alternator | 35 A | N/A | |||
| Others | |||||
| Accessories | N/A | Tipping trailer kit with quick release coupler, bumper, drawbar, mobile charger, top link, water bottle holder | |||
