Solis
Solis 5015 E 4WD and Kubota MU 5502 4WD
Solis 5015 E 4WD
50 HP
8.75 Lakh - 8.78 Lakh
|

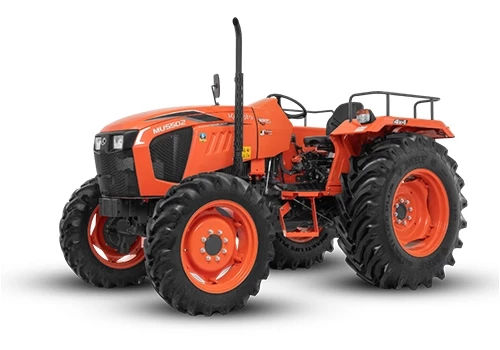

Kubota MU 5502 4WD
50 HP
11.81 Lakh - 12.37 Lakh
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine rated RPM | 2000 RPM | 2200 RPM | |||
| HP Category | 50 HP | 50 HP | |||
| Displacement CC in | N/A | 2434 CC | |||
| No. of cylinder | 3 Cylinder | 4 Cylinder | |||
| Max Torque - Nm | 210 Nm | 35 % Nm | |||
| Air Cleaner / Filter | Dry | Dry type, Dual element | |||
| Cooling System | Coolant Cooled | Liquid Cooled | |||
| Fuel type | Diesel | N/A | |||
| Hydraulics | 2000 | N/A | |||
| Transmission | |||||
| Transmission type | Constant Mesh | Main Transmission Synchromesh | |||
| No. of gears Forward | 10 Forward | 12 Forward Forward | |||
| No. of gears Reverse | 5 Reverse | 4 Reverse Reverse | |||
| Speed Forward - kmph | 2.8 - 40 Kmph | 1.8- 30.8 Kmph | |||
| Speed Reverse - kmph | 2.6 - 12.2 Kmph | 5.1 - 14 Kmph | |||
| Brakes type | Multi Disc Oil Immersed Brakes | Oil Immersed Multi Disc Brakes | |||
| clutch type | Dual / Single Clutch | Double Clutch | |||
| Gear Box Type | 10 Forward + 5 Reverse | 12 Forward + 4 Reverse | |||
| Power Take Off | |||||
| Max PTO (HP) | 42.5 HP | N/A | |||
| PTO RPM @ engine, rpm | 540 RPM | "STD : 540 @2160 ERPM ECO : 750 @2200 ERPM " RPM | |||
| PTO Type | N/A | Independent, Dual PTO | |||
| Steering | |||||
| Steering type | Power steering | Power (Hydraulic double acting) | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 2000 Kg | 1,800 kgf and 2,100 kgf at lift point Kg | |||
| 3 Point Linkage | Cat 2 Implements | N/A | |||
| Type | ADDC | N/A | |||
| Dimensions & Weight | |||||
| Ground Clearance | N/A | 420 MM Nm | |||
| Total Weight | 2330 mm Kg | 2560 Kg | |||
| Turning radius With Brake | N/A | 3.0 Nm | |||
| Overall Length | 3610 mm | 3715 mm | |||
| Overall Width | 1970 mm | 1965 mm | |||
| Wheel Base | 2080 mm | 2050 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 8.3 x 20 | 9.5 x 24 | |||
| Tyre Size Rear | 14.9 x 28 | 16.9 X 28 | |||
| Type Front | N/A | NA | |||
| Type Rear | N/A | NA | |||
| Electrical | |||||
| Battery Capacity | N/A | 12 V 55 AH | |||
| Others | |||||
