ऐस डीआई ५५०एनजी विशेष विवरण
ऐस डीआई ५५०एनजी
2WD 7.25 Lakh - 7.8 Lakhविशेष विवरण
| ACE DI 550NG Engine | |
|---|---|
| Engine type | Direct Injection Water Cooled |
| Engine rated RPM | 2100 RPM |
| HP Category | 49.5 HP |
| Displacement CC in | 3065 CC |
| No. of cylinder | 3 Cylinder |
| Max Torque - Nm | 200 Nm |
| Air Cleaner / Filter | Dry Type |
| Cooling System | Water Cooled |
| Emission standard | Bharat 3A |
| Fuel type | High Speed Diesel |
| Fuel Pump Type | Inline |
| Power KW | 36.9 KW |
| stroke in (mm) | 118 mm |
| Bore in (mm) | 105 mm |
| Height | 2300 mm |
| Hydraulics | 1800 |
| ACE DI 550NG Transmission | |
| Transmission type | Sliding Mesh |
| No. of gears Forward | 8 Forward |
| No. of gears Reverse | 2 Reverse |
| Speed Forward - kmph | 2.7 - 35.1 Kmph |
| Speed Reverse - kmph | 3.76 - 14.85 Kmph |
| Brakes type | Dry Disk (Servicable)/Oil Immersed Brakes (Optional) |
| clutch type | Dual Clutch |
| Gear Box Type | 8 Forward + 2 Reverse Sliding Mesh |
| Front Axle | Rigid/Adjustable |
| ACE DI 550NG Power Take Off | |
| Max PTO (HP) | 46.22 HP |
| PTO RPM @ engine, rpm | 540 RPM |
| PTO Type | Live -6 splines |
| ACE DI 550NG Steering | |
| Steering type | Power Steering |
| ACE DI 550NG Hydraulic | |
| Lifting Capacity Max. | 1800 Kg |
| 3 Point Linkage | Cat I/II |
| Type | Live |
| ACE DI 550NG Dimensions & Weight | |
| Ground Clearance | 430 Nm |
| Total Weight | 1960 Kg |
| Turning radius Without Brake | 3500 mm |
| Overall Length | 3660 mm |
| Overall Width | 1830 mm |
| Wheel Base | 1960 mm |
| ACE DI 550NG Wheels & Tyres | |
| Tyre Size Front | 7.50 x 16 |
| Tyre Size Rear | 14.9 x 28 |
| ACE DI 550NG Electrical | |
| Battery Capacity | 12 V 88 Ah AH |
| Alternator | 12 V 42 A |
| Battery Type | Lead Acid |
कृपया पढ़ें सुरक्षा टिप्स कोई भी खरीदारी करने से पहले सावधानी से
अधिक जानते हैं

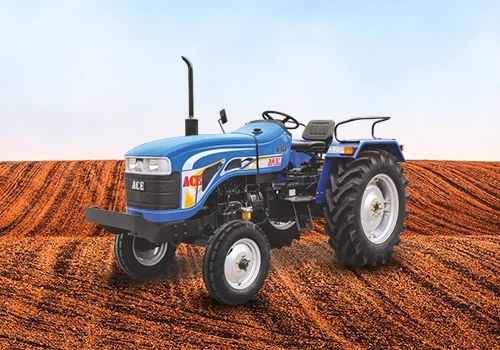

ACE DI 550NG Tractor
The agricultural sector plays a vital role in the Indian Economy. But, nowadays agricultural farming depends on advanced machinery, tools, and equipment. You will get ACE DI 550NG tractor specifications here. Every new day, new brand tractors are coming up with advanced features and technology and are boosting the Indian market as well as satisfying the needs of the farmers. ACE DI 550NG tractor is manufactured by one of the most popular brands In India, 22- 23 tractor brands are manufactured across the country with excellent specifications and automotive productions.
If we talk about the tractors, so every tractor has its own specialty in the form of features and the benefits provided in them. ACE is one of the trusted brands in India. These features help the customers to research and compare with the other tractor models. ACE DI 550NG has 49 HP. Some of the specific features that buyer's focussed before purchasing the tractor are utility, budget, comfort and safety, comparison, and consultation with the dealers.
Additionally, the specifications are listed as more 'engine power' and more tractor runs. You will get 41-50 HP Range in ACE DI 550NG. The other factor goes with the transmission which includes gears, reverse, and forward speed, the functioning of brakes, and power of the single and dual-clutch system. ACE DI 550NG tractor has 2WD. The hydraulics make the turning easier which is also used for lifting attachments and implements. The PTO shaft is the part of the equipment located in the tractor.
ACE DI 550NG tractor has 3065 CC displacement in CC. The tires and battery capacity tell the smooth functioning of the tractor. Tractor ACE DI 550NG has 3 number of cylinders. You will get 46.22 PTO HP in the tractor ACE DI 550NG.
This tractor provides a 8 Forward + 2 Reverse Sliding Mesh gearbox.
So, if you are looking for the tractor price of the tractor go through the official links, websites, and dealers and services like Khetigaadi that provide reliable information to the customers.
