Powertrac
Powertrac 435 Plus and Powertrac 434 DS Plus Euro 37
Powertrac 435 Plus
37 HP
|

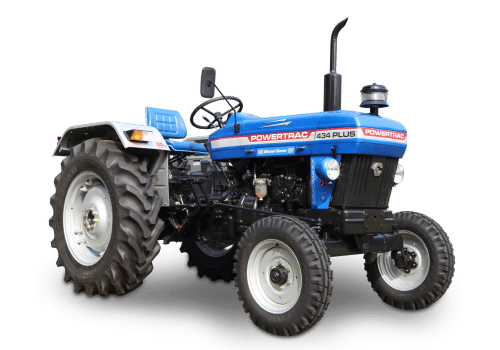

Powertrac 434 DS Plus Euro 37
37 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine rated RPM | 2200 RPM | 2200 RPM | |||
| HP Category | 37 HP | 37 HP | |||
| Displacement CC in | 2146 CC | 2146 CC | |||
| No. of cylinder | 3 Cylinder | 3 Cylinder | |||
| Air Cleaner / Filter | Oil Bath Type | N/A | |||
| Cooling System | Water Cooled | N/A | |||
| Fuel type | Diesel | Diesel | |||
| Hydraulics | 1500/1600 kg Senis-1 | 1500 | |||
| Transmission | |||||
| Transmission type | Center Shift | Sliding Mesh | |||
| No. of gears Forward | 8 Forward | 8 Forward | |||
| No. of gears Reverse | 2 Reverse | 2 Reverse | |||
| Speed Forward - kmph | 2.7 - 30.6 Kmph | 2.7-30.3 Kmph | |||
| Speed Reverse - kmph | 3.3 - 10.2 Kmph | 3.3-10.1 Kmph | |||
| Brakes type | Multi Plate Oil Immersed Disc Brakes | Multi Plate Oil Immersed Disc Brake / Multi Plate Dry Disc Brake optional | |||
| clutch type | Single Clutch | Single Clutch | |||
| Gear Box Type | 8 Forward + 2 Reverse | N/A | |||
| Front Axle | N/A | Fixed-Straight Axle | |||
| Rear Axle | Inboard Reduction | Inboard Reduction | |||
| Power Take Off | |||||
| Max PTO (HP) | 34 HP | N/A | |||
| PTO Type | N/A | Single 540 | |||
| Steering | |||||
| Steering type | Power Steering/Mechanical Single Drop Arm Option | Mechanical Single drop arm option | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1500/1600Senis-1 Kg | 1500 Kg | |||
| Dimensions & Weight | |||||
| Ground Clearance | 375 Nm | 400 Nm | |||
| Total Weight | 1850 Kg | 1920 Kg | |||
| Overall Length | 3225 mm | 3270 mm | |||
| Overall Width | 1750 mm | 1750 mm | |||
| Wheel Base | 2010 mm | 2010 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 6.0 x 16 | 6.0 x 16 | |||
| Tyre Size Rear | 13.6 x 28 | 13.6 X 28 | |||
| Electrical | |||||
| Battery Capacity | 12 V 75 Ah AH | N/A | |||
| Alternator | 12 V 36 Ah | N/A | |||
| Others | |||||
