Powertrac
Powertrac 434 Plus Powerhouse and Powertrac 437
Powertrac 434 Plus Powerhouse
39 HP
6.35 Lakh - 6.6 Lakh
|

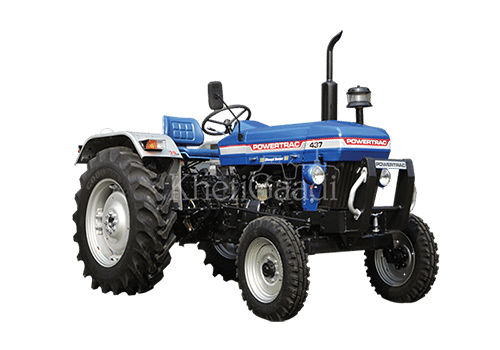

Powertrac 437
39 HP
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine rated RPM | 2000 RPM | 2200 RPM | |||
| HP Category | 39 HP | 39 HP | |||
| Displacement CC in | 2340 CC | 2146 CC | |||
| No. of cylinder | 3 Cylinder | 3 Cylinder | |||
| Air Cleaner / Filter | Oil Bath | 3 Stage Oil Bath Type | |||
| Cooling System | N/A | Water Cooled | |||
| Fuel type | N/A | Diesel | |||
| Dry Weight kg | 1850 Kg | N/A | |||
| Hydraulics | 1600 | 1600 | |||
| Transmission | |||||
| Transmission type | N/A | Constant Mesh | |||
| No. of gears Forward | 8 Forward | 8 Forward | |||
| No. of gears Reverse | 2 Reverse | 2 Reverse | |||
| Speed Forward - kmph | N/A | 2.7 - 30.6 Kmph | |||
| Speed Reverse - kmph | N/A | 3.3 - 10.2 Kmph | |||
| Brakes type | N/A | Multi Plate Oil Immersed Disc Brakes | |||
| clutch type | N/A | Single Clutch | |||
| Gear Box Type | N/A | 8 Forward + 2 Reverse | |||
| Front Axle | N/A | Fixed-Straight Axle | |||
| Rear Axle | N/A | Inboard Reduction | |||
| Power Take Off | |||||
| Max PTO (HP) | N/A | 33 HP | |||
| PTO RPM @ engine, rpm | N/A | 540@ 1800 engine RPM RPM | |||
| PTO Type | N/A | Single 540 | |||
| Steering | |||||
| Steering type | Power Steering | Power Steering / Mechanical Single Drop Arm Option | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1600 Kg | 1600 Kg | |||
| Type | N/A | Sensi-1 Hydraulics | |||
| Dimensions & Weight | |||||
| Ground Clearance | 375 Nm | 375 Nm | |||
| Total Weight | 1850 Kg | 1850 Kg | |||
| Overall Length | N/A | 3225 mm | |||
| Overall Width | N/A | 1750 mm | |||
| Wheel Base | 2060 mm | 2010 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 6.0X16 | 6.0 x 16 | |||
| Tyre Size Rear | 13.6X28 | 13.6 x 28 | |||
| Electrical | |||||
| Others | |||||
