Farmtrac

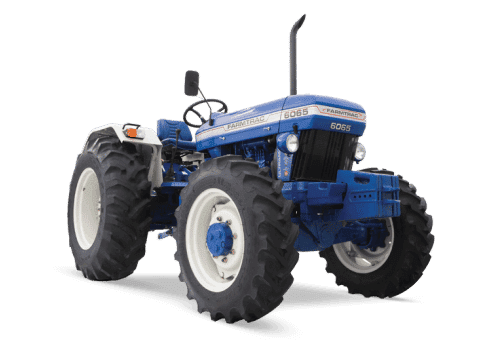

Farmtrac 6065 Ultramaxx and Escorts Farmtrac 6065 Ultramaxx
Farmtrac 6065 Ultramaxx
65 HP
|
Escorts Farmtrac 6065 Ultramaxx
65 HP
9.9 Lakh - 10.56 Lakh
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine rated RPM | 2200 RPM | 2200 RPM | |||
| HP Category | 65 HP | 65 HP | |||
| No. of cylinder | 4 Cylinder | 4 Cylinder | |||
| Fuel type | Diesel | N/A | |||
| Hydraulics | 2400 | N/A | |||
| Transmission | |||||
| Transmission type | Synchronmesh | N/A | |||
| No. of gears Forward | 12 Forward | 12 Forward | |||
| No. of gears Reverse | 12 Reverse | 12 Reverse | |||
| Speed Forward - kmph | 1.46-30.02 Kmph | 1.38-28.34 Kmph | |||
| Speed Reverse - kmph | 1.23-25.18 Kmph | 1.16-23.76 Kmph | |||
| Brakes type | Multi Plate Oil Immersed Brakes | Multi Plate Oil Immersed Disc Brake | |||
| clutch type | Independent Clutch | Independent Clutch | |||
| Gear Box Type | 12 Forward + 12 Reverse Synchronmesh With Fwd/Rev Synchro Shuttle | N/A | |||
| Front Axle | Indegenous 4WD Axle | Indegenous 4WD Axle | |||
| Rear Axle | Epicyclic Reduction | Epicyclic Reduction | |||
| Power Take Off | |||||
| PTO RPM @ engine, rpm | 1940 RPM | 1940 RPM | |||
| PTO Type | 540 and Ground Speed Reverse PTO | 540 and Ground Speed Reverse PTO | |||
| Steering | |||||
| Steering type | Balanced Power Steering | Balanced Power Steering | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 2400 Kg | 2400 Kg | |||
| Spool Valve | Double Acting Spool Valve | N/A | |||
| Type | ADDC | ADDC | |||
| Dimensions & Weight | |||||
| Ground Clearance | 410 Nm | 410 Nm | |||
| Total Weight | 2805(Unballasted) Kg | 2805 Kg | |||
| Turning radius With Brake | 4200 Nm | 4200 Nm | |||
| Overall Length | 4160 mm | 4160 mm | |||
| Overall Width | 1980 mm | 1980 mm | |||
| Wheel Base | 2240 mm | 2240 mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 11.2 x 24 | 11.2 X 24 | |||
| Tyre Size Rear | 16.9 x 30 | 16.9 X 30 | |||
| Electrical | |||||
| Others | |||||
