Escorts
Escorts Farmtrac 45 Classic and Powertrac 439 Plus Powerhouse

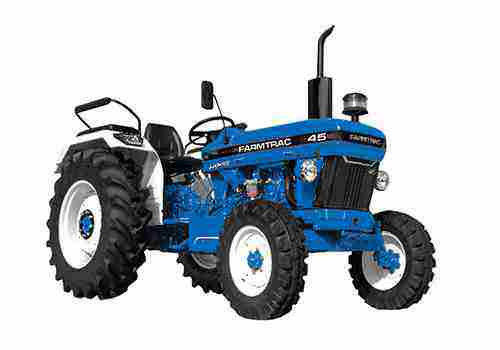

Escorts Farmtrac 45 Classic
45 HP
7 Lakh - 7.8 Lakh
|
Powertrac 439 Plus Powerhouse
45 HP
7.3 Lakh - 7.5 Lakh
|
| Engine | |||||
|---|---|---|---|---|---|
| Engine rated RPM | 1850 RPM | 2200 RPM | |||
| HP Category | 45 HP | N/A | |||
| Displacement CC in | 3140 CC | 2490 CC | |||
| No. of cylinder | 3 Cylinder | 3 Cylinder | |||
| Air Cleaner / Filter | Three Stage Pre Oil Cleaning | Oil Bath | |||
| Dry Weight kg | N/A | 2000 Kg | |||
| Shifting Type | N/A | Center Shift / side shift option | |||
| Hydraulics | N/A | 1600 KG - Sensi-1 | |||
| Transmission | |||||
| Transmission type | Full Constant Mesh | N/A | |||
| No. of gears Forward | 8 Forward | N/A | |||
| No. of gears Reverse | 2 Reverse | N/A | |||
| Speed Forward - kmph | 2.8-30.0 Kmph | N/A | |||
| Speed Reverse - kmph | 4.0-14.4 Kmph | N/A | |||
| Brakes type | Multi Plate Oil Immersed Brakes | Multi Plate Oil Immersed Disc Brake | |||
| clutch type | Dual Clutch/Single Clutch | Single Clutch / Dual optional | |||
| Gear Box Type | 8F+2R Full Constant Mesh | 8Forward + 2Reverse | |||
| Front Axle | Adjustable Axle/Bend Axle | N/A | |||
| Rear Axle | Straight Axle | Inboard Reduction | |||
| Power Take Off | |||||
| Max PTO (HP) | N/A | 540 HP | |||
| PTO RPM @ engine, rpm | 1810 RPM | N/A | |||
| PTO Type | 540 & Multi Speed Reverse PTO | N/A | |||
| Steering | |||||
| Steering type | Balanced Power Steering/Mechanical - Single Drop Arm | Power Steering / Mechanical Single drop arm option | |||
| Hydraulic | |||||
| Lifting Capacity Max. | 1500/1800 Kg | N/A | |||
| Spool Valve | Singe Acting Directional Control Valve | N/A | |||
| Type | ADDC - 1800 kg | N/A | |||
| Dimensions & Weight | |||||
| Ground Clearance | 370 Nm | 400 Nm | |||
| Total Weight | 1865(Unballasted) Kg | N/A | |||
| Turning radius With Brake | 3135 Nm | N/A | |||
| Overall Length | 3355 mm | N/A | |||
| Overall Width | 1735 mm | N/A | |||
| Wheel Base | 2110/1860 mm | 2010, 2055(DC) mm | |||
| Wheels & Tyres | |||||
| Tyre Size Front | 6.5 X 16 | 6.0 x 16 | |||
| Tyre Size Rear | 13.6 X 28 | 13.6X28 | |||
| Electrical | |||||
| Battery Capacity | 12 V 75 AH AH | N/A | |||
| Alternator | 12 V 36 A | N/A | |||
| Others | |||||
