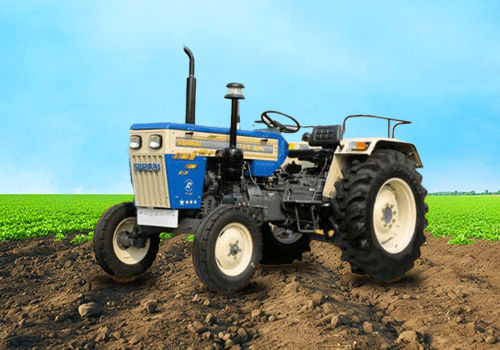

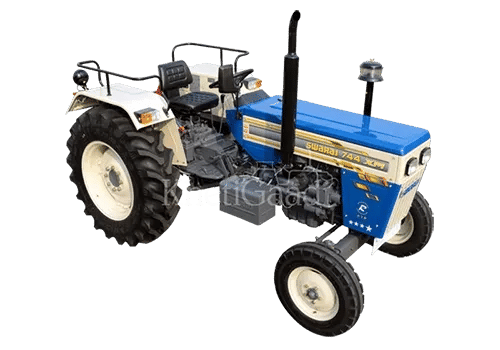

Swaraj 744 XM Specifications

Engine Type : 4 Stroke, Direct Injection, Diesel Engine
Engine Rated RPM : 1800
Engine HP : 48.00
Power KW :29.3
Displacement CC :3307
Bore in (mm) :110
Stroke in (mm) : 116
Cooling System : Water Cooled with No loss tank
Fuel Type :Diesel
No. of Cylinder :3
Torque : 184.5 Nm
Air Cleaner / Filter :3- Stage Oil Bath Type
Max Speed : 2.6 to 29.6 kmph
Speed Reverse - kmph :2.6 to 10.4 kmph
Power Take Off (P.T.O rpm) :540
No. of gears Forward :8
No. of gears Reverse :2
Gear Box Type :Fully Constant
Brakes Type :Oil Immersed Brakes
Clutch Type :Dual Clutch

PTO RPM : 540

Max P.T.O.(HP) :45
Steering Type :Mechanical
Type :Live With Position control, Automatic draft control and Mix Control and Toggle switch
Lifting Capacity at Standard Frame :1700 Kg
3 Point Linkage :3 point linkage Category-I suitable for Category-II type implement pins
Pump Type :Gear Pump
Total Weight :2080 Kg
Wheel Base :2140 mm
Overall Length :3555 mm
Overall Width :1730 mm
Ground Clearance :400 mm
Drive : 2WD
Wheel Track Front :1300 mm
Wheel Track Rear :1350 mm
Battery Capacity :12V, 88Ah
Website :http://www.swarajtractors.com/


Swaraj 744 XM
