Captain 120 DI 4WD Specifications

Emission Standard : BS IIIA
Engine Rated RPM : 2600
HP : 15
Bore in (mm) :85
Stroke in (mm) : 110
Cooling System : Air Cooled
Fuel Type :Diesel
Cylinder Capacity cc :625
No. of Cylinder :1
Air Cleaner / Filter :Oil bath type
Transmission Type : Combination of Synchromesh- and Sliding mesh Gears
Drive : 4 WD
Max Speed : 19
P.T.O. Type :Rear Mounting, 6 Spline
No. of gears Forward :8
No. of gears Reverse :2
Brakes Type :Dry Internal Expanding- Shoe Type (Waterproof)
Clutch Type :Single, Dry Friction Plate
Type :Live, ADDC
Pump Type :Gear Type
Transmission Oil : 3.5
Fuel Tank Capacity : 16 Liters
Total Weight :780 Kg
Height :1700 mm
Wheel Base :1430 mm
Overall Length :2510 mm
Overall Width :1040 mm
Ground Clearance :260 mm
Turning Radius of Brakes :2.2
Turning Radius w. o. Brakes :2.7
Wheel Track Front :845
Wheel Track Rear :825
Tyre Size Front :5.20×14
Tyre Size Rear :8.00 x 18
Battery Capacity :12 V, 65 Ah

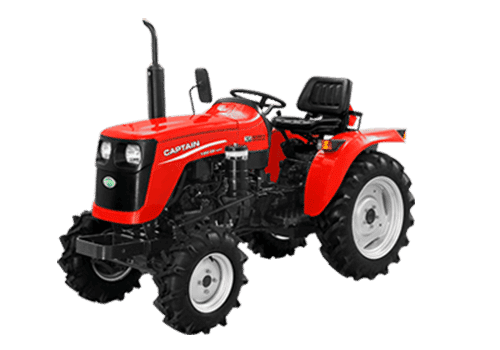

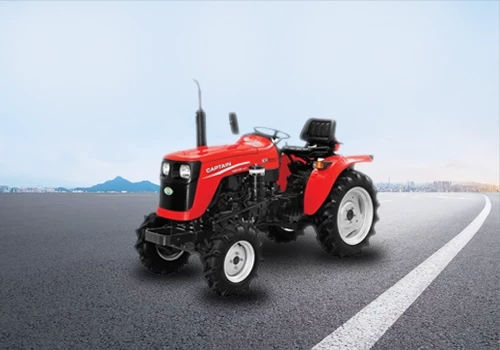

Captain 120 DI 4WD
